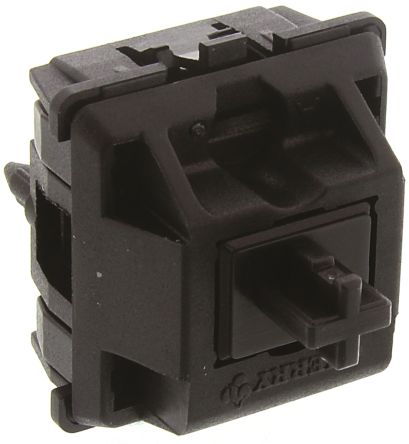

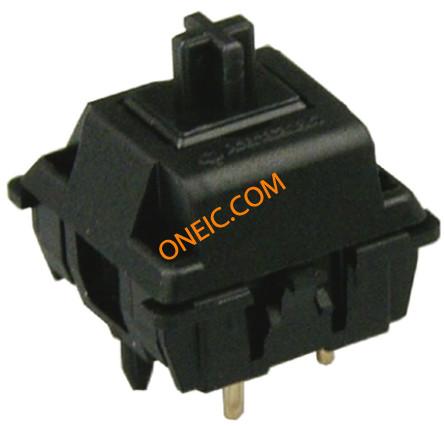

MX1A-11NW
| Manufacturer | |
| Description | Keylock Switches LINEAR PCB MOUNT Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.58N PC Pins Thru-Hole SWITCH PUSH SPST-NO 0.01A 12V SPST-NO Keyboard Switch, 0.01 A @ 12 V ac/dc, -10 to +70°C Smooth action keyboard switch with pins Pushbutton Switches LINEAR PCB MOUNT SWITCH, TACTILE, SPST-NO, 0.01A, THT Switch,Key;Keyboardlowprofile;10mA12VDC;PCBmount;Stdforce Cherry 单刀单掷 - 常开 键盘开关, 0.01 A@ 12 V ac, 0.01 A@ 12 V dc, -10 → +70°C |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL94HB | Tariff No | 85365005 |
| Material Flammability Rating | UL 94HB | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12V |
| Switch Function | Off-Mom | Current Rating (Max) | 10mA (AC/DC) |
| Current - Max/Contact | :10mA | Insulation Resistance | 100Megohms@100V |
| Voltage - Input (Min) | 12 | Switch Function/Rating | N.O. |
| Contact Rating (Current) | 0.01 A @ 12 V ac/dc | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :12V | Resistance - Initial (Ri) (Min) | 25Milliohms(Typ.) |
| Voltage - Rated AC (Phase to Ground/Neutral) | :12V | ||
Mechanical
| Depth | 15.6 | Height | 15.2 |
| Weight | 0.00159 | Packaging | Bulk |
| Row Spacing | 6.35 | Contact Form | SPSTNO |
| Pitch - Post | 2.54 | Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Contact Finish | Gold | Mounting Style | PCB |
| Shell Material | Thermoplastic | Actuator Length | 3.6 |
| Operating Force | :2.1ozf | Contact Material | Silver/Gold |
| Housing Material | Thermoplastic | Length - Overall | 15.6 |
| Termination Style | PC Pin | Number of Contacts | 2 |
| Color - Actuator/Cap | Black | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPST-NO | Rotational Life (Cycles Min) | 4.06 |
Product Info
| Type | Desktop Profile | Series | MX |
| Electrical Life | 50,000,000 Cycles | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
