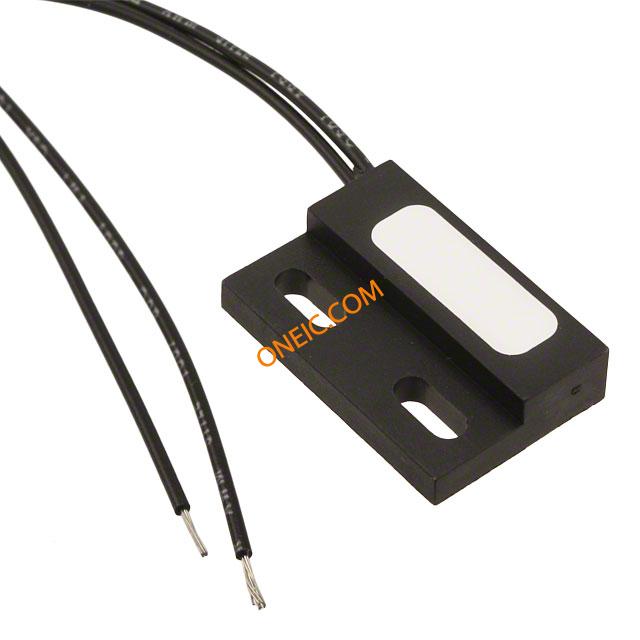

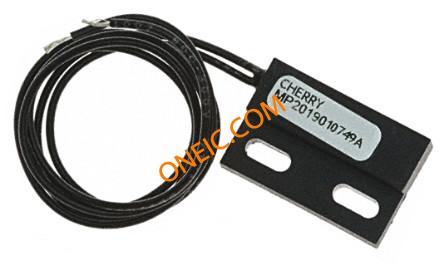

MP201901
| Manufacturer | |
| Description | Proximity Sensors SPST-N/O FLANGE MNT Proximity Sensor Magnetic 100V 100V 2-Pin SWITCH MAGN REED SPST 10W 175V Cherry Rectangular Magnetic Proximity Sensor Inductive Proximity Sensor Sensor; Proximity; 175 VDC (Max.); 0.5 A (Max.); 10 W (Max.); Normally Open Proximity Sensor Magnetic 100V 100V 2-Pin Product Highlights:Immune to Hostile EnvironmentsHermetically Sealed for Long LifeSuitable for DC and AC CircuitsZero Power ConsumptionStandard Magnetic Actuator is Available in the Same Housing Cherry Part Number AS201901 SENSOR, PROX, 22.9MM, NO Sensor,Proximity;175VDC(Max.);0.5A(Max.);10W(Max.);NormallyOpen Cherry 矩形 磁性接近传感器 电感接近传感器, 28.58 x 19.1 x 6.35 mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH407 |
| Subcategory | Proximity Sensor | Product Category | Proximity Sensors |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed | Tariff No | 90318038 |
Electrical
| Output | Relay | Output Type | SPST-NO |
| Power - Rated | 10W(Max.) | Sensing Range | :22.86mm |
| Current - Output | 500 mA | Voltage - Supply | 175V |
| Current - Switching | 0.5A | Current Rating (Max) | 0.5A(Max.) |
| Voltage - Supply (Min) | 100 | Voltage - Switching DC | 175VDC |
| Voltage - Supply (Vcc/Vdd) | 100(Max) | Resistance - Initial (Ri) (Min) | 0.2Ohms |
Mechanical
| Shape | Rectangular | Width | 19.1mm |
| Height | 6.35mm | Length | 28.58mm |
| Weight | 0.2 | Lead Style | Cable |
| Wire Gauge | 24AWG | Termination | 2-WireCable |
| Mounting Type | :Flange | Mounting Style | Screw |
| Package / Case | * | Primary Material | Proximity |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 2 | ||
Product Info
| Type | Magnetic | Series | MP2019 |
| Function | Switch | Technology | Reed |
| Manufacturer | MP2019 | Must Release | 22.86mm |
| Sensing Method | Magnetic | Measuring Range | 22.86mm |
| Module/Board Type | Module | Application Specifics | Magnetic Proximity Sensor |
Environmental
| Must Operate | 10.16mm | Operating Temperature | - 40 C |
