点击放大查看

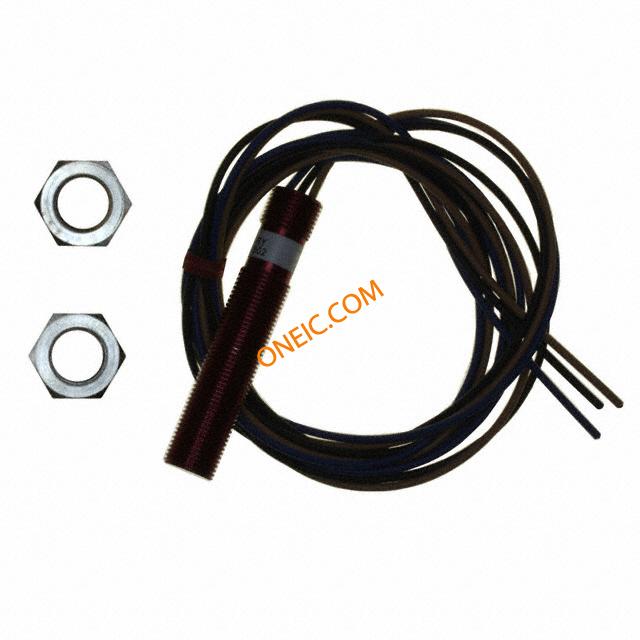

GS100502
| Manufacturer | |
| Description | Speed Sensors M12-1 ALUM BARREL Geartooth Speed Sensor 4-Pin SENSOR GEARTOOTH SPEED ALUM M12 NPN Hall Effect Sensor, 25mA, 4.5 to 24V dc, IP68 Sensor; Geartooth Speed; M12-1; Sink; 4.5 to 24 VDC (Operating); 6 mA; 400 mV Geartooth Speed Sensor 4-Pin Product Highlights:Sense Motion of Ferrous Geartooth TargetsNear-Zero Speed Sensing CapabilityImmune to Hostile EnvironmentsSubject to Rotational OrientationHigh-Speed CapabilityOperate from 5 to 24VdcReverse Battery Protection to 24VdcWide Operating and Storage Temperature RangeSinking (Open Collector) Output SENSOR, GEARTOOTH, HALL EFFECT, 24V Sensor,GeartoothSpeed;M12-1;Sink;4.5to24VDC(Operating);6mA;400mV Cherry NPN 霍尔效应传感器 switching current 25 mA supply voltage 4.5 → 24 V 直流 |
| Category |
Business
| Lead Time | 126 Days | Subcategory | Specialized Sensor |
| Product Category | Speed Sensors | Standard Package | 1 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Tariff No | 90318038 | Protection Features | Yes |
Electrical
| Output | Voltage/Current | Output Type | Digital |
| Voltage Rating | 24V | Current - Output | 6 mA |
| Voltage - Supply | 5 V ~ 24 V | Current - Switching | 25 mA |
| Voltage - Input (Min) | 400mV | Voltage - Switching DC | 400mV |
| Voltage - Output (Min/Fixed) | :400mV | ||
Mechanical

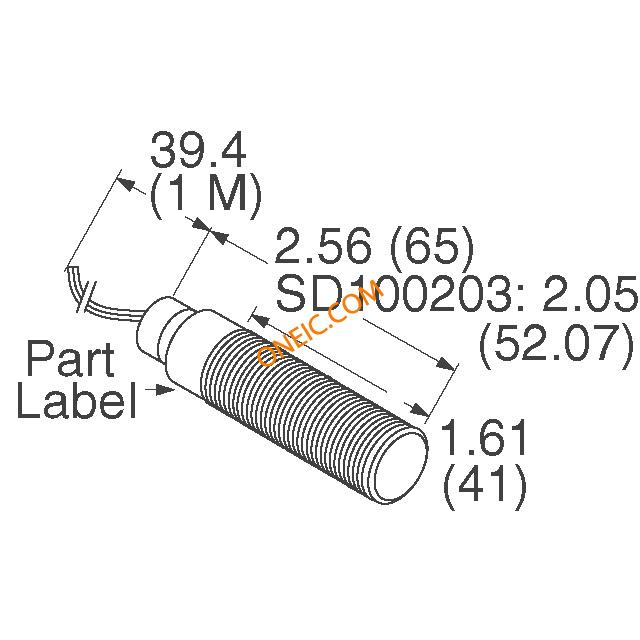

| Length | 65mm | Weight | 0.2 |
| Lead Style | Cable | Termination | 3-WireCable |
| Mounting Type | Panel | Terminal Type | Wire Lead |
| Connector Type | :Wire Leads | Mounting Style | Panel Mount |
| Package / Case | Barrel, Aluminum | Length - Barrel | 65mm |
| Housing Material | Aluminium | Length - Overall | 65.5 |
| Primary Material | Speed | Actuator Material | Ferrous Metals, Gear Tooth |
| Termination Style | Wire Leads | Number of Positions | 4 |
| Supplier Device Package | Barrel | ||
Product Info
| Type | Hall Effect | Series | GS1005 |
| Function | Speed | Technology | HallEffect |
| Manufacturer | GS1005 | Sensing Method | AdjustableField |
| Output Configuration | :Sink | Printed Circuit Board | 4 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP67 |
| Operating Temperature | +125°C | ||
