点击放大查看
PCM12SMTR
| Manufacturer | |
| Description | Switch Slide ON ON SPDT Side Slide 0.3A 6VDC 10000Cycle Gull Wing SMD T/R Switch Slide ON ON SPDT Side Slide 0.3A 6VDC 10000Cycles Gull Wing SMD T/R SW SLIDE SP2T 6VDC 0.3A SMT Slide Switches 0.3A SPDT ON-ON SWITCH, SPDT, 0.3A, 6VDC, SMD SLIDE SMTRA SPDT ON-ON HORIZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Other Names | 401-2016-2 |
| Subcategory | Switch Slide | Product Category | Slide Switches |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365019 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 6 V |
| Switch Function | On-On | Contact Resistance | :70mohm |
| Dielectric Strength | :500V | Current Rating (Max) | 0.3@6VDC A |
| Current - Max/Contact | :300mA | Insulation Resistance | :100Mohm |
| Switch Function/Rating | ON ON | Contact Rating (Current) | 0.3 A at 6 V |
| Contact Rating @ Voltage | 0.3A @ 6VDC | Voltage - Supply (Vcc/Vdd) | :6V |
Mechanical
| Depth | :2.6mm | Width | :6.7mm |
| Weight | 0.00009 | Packaging | Tape and Reel |
| Orientation | Right Angle | Contact Form | SPDT |
| Height (Max) | :1.4mm | Travel Range | 1.5 mm |
| Actuator Type | Standard | Mounting Type | Surface Mount |
| Terminal Type | Gull Wing | Contact Finish | Silver |
| Mounting Style | SMD/SMT | Contact Material | Copper Alloy |
| Termination Style | Gull Wing | Actuator Style/Size | :Raised |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| 1st Connector Mounting Type | :SMD | ||
Product Info
| Type | Ultra-Miniature | Series | PCM |
| Industry Aliases | PCM12SMTR | ||
Environmental
| Mechanical Life | 10000 | Switching Cycles | :10000 |
| Operating Temperature | -20 to 85 °C | ||
Documents & Media
Online Document
Online Document
Online Document
Online Document
PDF Document
Online Document
Similar Parts
PCM12SMTR
c&k components
Switch Slide ON ON SPDT Side Slide 0.3A 6VDC 10000Cycle Gull Wing SMD T/R Switch Slide ON ON SPDT Side Slide 0.3A 6VDC 10000Cycles Gull Wing SMD T/R SW SLIDE SP2T 6VDC 0.3A SMT Slide Switches 0.3A SPDT ON-ON SWITCH, SPDT, 0.3A, 6VDC, SMD SLIDE SMTRA SPDT ON-ON HORIZ
$4.1181
Details
MSS6-V-T/R
DIPTRONICS
SLIDE SMT DPDT ON-ON RA-HORIZ
$2.9920
Details
6MS1S2M1RE
Avnet, Inc.
SWITCH, SLIDE, SPDT, ON-ON
Details

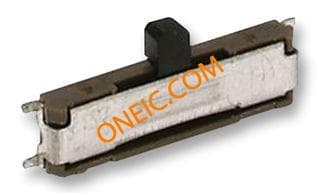

MSS3-V-T/R
