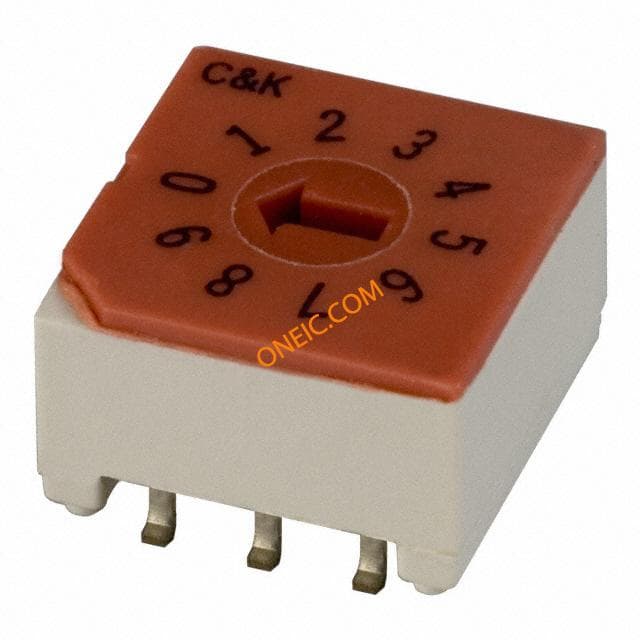

CRD10RM0SB
| Manufacturer | |
| Description | Switch DIP SP10T 10 Flush Screwdriver 20VAC 20VDC 0.4VA Gull Wing 30000Cycle 2.54mm SMD Tube Switch DIP SP10T 10 Flush Screwdriver 20VAC 20VDC 0.4VA Gull Wing 30000Cycles 2.54mm SMD Tube DIP / Rotary DIP SWITCH ROTARY DIP BCD FLUSH 20V Coded Rotary Switches BCD FLUSH ACT SWITCH, 10POS, BCD, 0.4VA, 20V, SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 450 | Unit Pack | 45 |
| Product Category | Coded Rotary Switches | Standard Package | Rail / Tube |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85365011 |
Electrical
| Circuit | BCD | Power - Rated | 0.4@20VAC 20VDC |
| Voltage - Core | :400mV | Voltage Rating | 20 V |
| Number of Poles | :1 | Dielectric Strength | 300 VoltsAC |
| Voltage - Input (Min) | 20 | Contact Rating @ Voltage | 0.4VA @ 20VAC/DC |
| Voltage - Supply (Vcc/Vdd) | :20V | ||
Mechanical
| Seal | Process | Depth | 10 |
| Height | 6.89 | Weight | 0.045 |
| Packaging | Tube | Orientation | Top Actuated |
| Termination | :SMD | Pitch - Post | 2.54 |
| Actuator Type | Rotary for Tool | Mounting Type | Surface Mount |
| Terminal Type | Gull Wing | Actuator Level | Flush |
| Contact Finish | Gold/Nickel | Contact Material | Beryllium Copper |
| Length - Overall | 10 | Termination Style | SMD/SMT |
| Actuator Style/Size | Flush Screwdriver | Number of Positions | 10 |
| Switch Actuation Level | SP10T | ||
Product Info
| Series | CRD | Washable | Yes |
| Electrical Life | 20000 | Outputs and Type | Binary Coded Decimal True |
Environmental
| Mechanical Life | 30000 | Operating Temperature | -20 to 85 °C |
