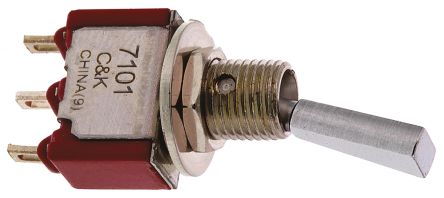

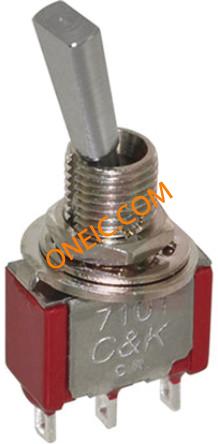

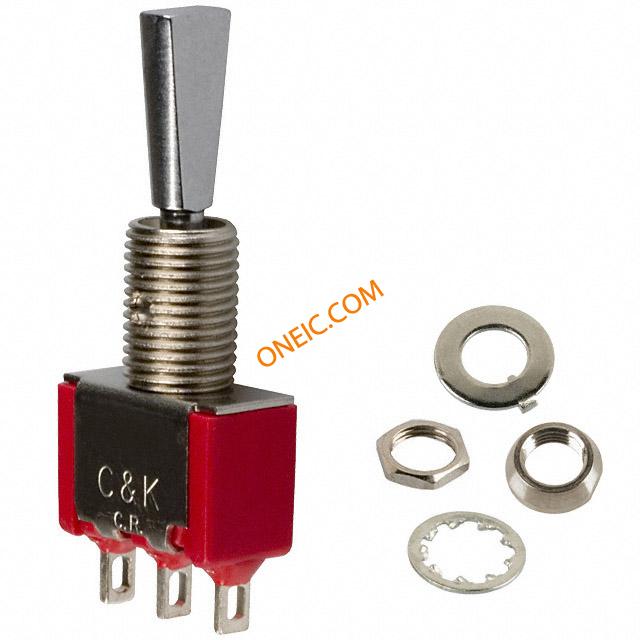

7101P3YZQE
| Manufacturer | |
| Description | Switch Toggle ON None ON SPDT Flat Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Toggle SPDT ON-ON 2A@250VAC Ag SWITCH TOGGLE SPDT 5A 120V Switch Toggle on-none-on Solder Toggle Switches ON-ON SPDT SLDR MNT SWITCH, SPDT, 5A, 120VAC, FLATTENED Switch,Toggle,Flat,PanelMount,SPDT,On-None-On,5Amps@120VACor28VDC Switch: toggle; 2-position; SPDT; ON-ON; 2A/250VAC; 5A/28VDC C&K SWITCH C & K SP 切换开关 , 开 - 开, 5 A@ 28 V 直流，5 A@ 120 V 交流 |
| Category |
Business
| MOQ | 50 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | COMPL | Tariff No | 85365080 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Circuit | SPDT | Voltage Rating | 28 V |
| Switch Function | ON-ON | Voltage - Supply | 250 ACV |
| Switching Voltage | ON-ON | Contact Resistance | 10mΩ |
| Current Rating (Max) | 5@120VAC 28VDC A | Current - Max/Contact | :5A |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | ON None ON |
| Contact Rating (Current) | 5 A @ 28 V dc, 5 A @120 V ac | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :28V | Switch Time (Ton, Toff) (Max) | 2000mA |
| AC contacts rating (at resistance load) | 2 A / 250 VAC | DC contacts rating (at resistance load) | 5 A / 28 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :120V | ||
Mechanical
| Depth | 6.86 | Pitch | 4.7mm |
| Height | 11mm | Weight | 0.006 |
| Plating | Ag | Packaging | Bulk |
| Lead Style | for soldering | Size - Body | 12.7 x 6.86 x 8.89mm |
| Termination | Solderlug | Contact Form | SPST |
| Contact Type | SPDT | Actuator Type | Flat Anti-Rotation |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | 1/4-40 | Connector Type | NoY/N |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Actuator Length | 11.43mm | Material Finish | :- |
| Contact Material | Coin Silver | Length - Overall | H29,2mm |
| Package Quantity | 100 | Size / Dimension | 12,7x6,9mm |
| Actuator Diameter | 11.4mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug | Actuator Style/Size | Flat Lever |
| Number of Positions | 2-position | Bushing, Grommet Type | 0.28 in |
| Mounting Hole Diameter | Ø6.35mm | Switch Actuation Level | SPDT |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Contact Material - Plating | silver plated | Material - Housing & Prism | N/A/Stainless Steel |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 100 | Type | Miniature |
| Series | 7000 | Features | Epoxy Sealed Terminals |
| Matchcode | 7101P3YZQE ** | Switch Type | toggle |
| Illumination | Non-Illuminated | Electrical Life | 100000cycles |
| Number of Units | 1 | Standard Leadtime | 16 weeks |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | Sealed | Ingress Protection | Terminals |
| Operating Temperature | -30 to 85 °C | ||
