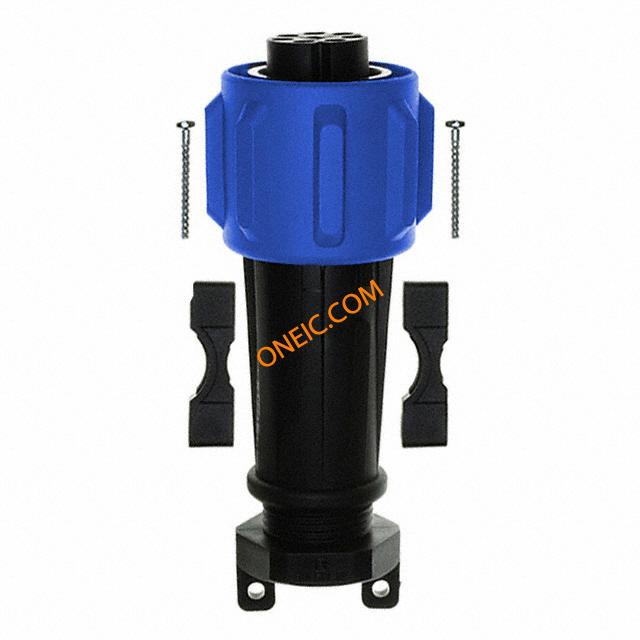

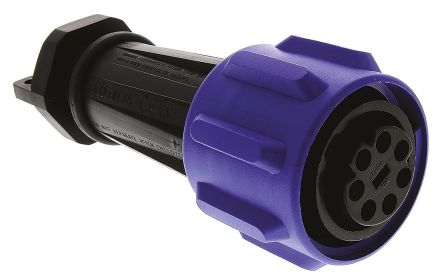

PXA911/07/S
| Manufacturer | |
| Description | Standard Circular Connector 7 POLE FLEX SKT CONN PLUG 7POS CABLE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 7 POS Screw ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, 7WAY CONN PLUG 7POS INLINE SKT Connector;Socket;7;146mm;50mm(Min.);20to22mm;32A;430V;-40degC Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 插座 , 螺纹接合 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 430VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2kV |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Width | :46mm | Length | :127mm |
| Weight | 0.18 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 13-10 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 20-22mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | Brass | Housing Material | Polyamide |
| Package Quantity | 10 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Axial Screw |
| 1st Contact Gender | Female | Mating Orientation | Threaded |
| Number of Contacts | 7 | Contact Termination | :Screw |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | 2.5...4mm2 |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Spg | 10 | Type | CableSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Features | Cable Clamp | Manufacturer | 900Series |
| Product Type | Connectors | Adapter Series | Buccaneer 900 |
| Number of Units | 1 | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器

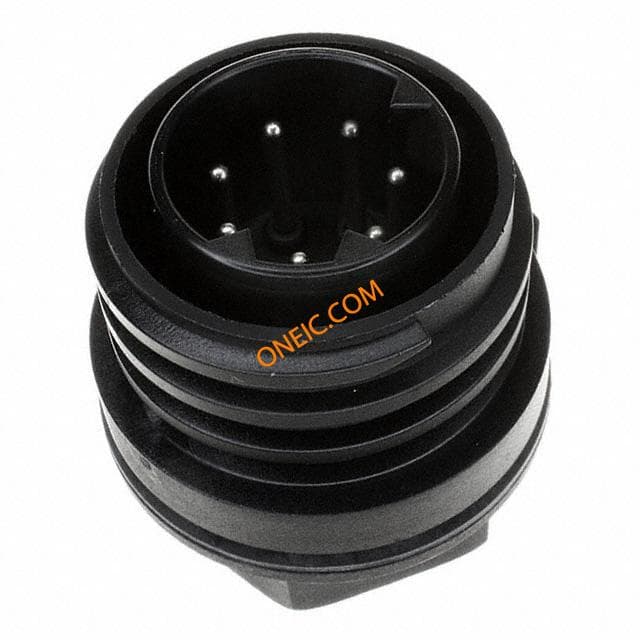

PX0931/07/P
