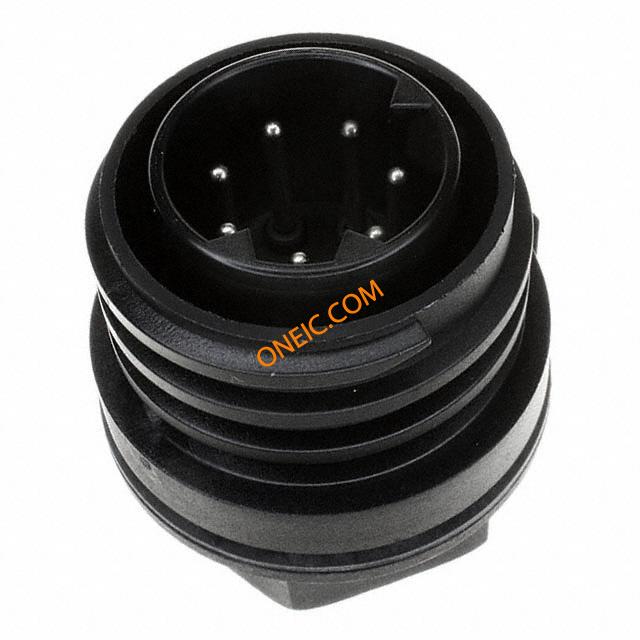

PX0931/07/P
| Manufacturer | |
| Description | Standard Circular Connector 7 POLE CHAS MT PLG CONN RCPT 7POS PNL MNT PIN 7 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 7 POS Screw ST Panel Mount 7 Terminal 1 Port Connector;Plug;7;13to10AWG;AxialScrewTerminal;32A;430VAC/VDC Connector: circular; socket; male; PIN:7; Buccaneer 900; IP68; 32A Appliance plug Buccaneer 900, 7-pole 7, PX0931/07/P, Bulgin Bulgin Buccaneer 系列 7路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 430VAC/DC | Number of Poles | 7 |
| Current Rating (Max) | 32A | Current Rating - Appliance Inlet | 32 |
| Voltage - Protection Level (VP) (2416) | IP 68 | ||
Mechanical
| Weight | 0.1 kg | Packaging | Bulk |
| Wire Gauge | 13-10 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Contact Type | Pin | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Panel | Locking Feature | threaded joint, external thread |
| Contact Material | Brass | Housing Material | Polyamide |
| Package Quantity | 10 | Primary Material | Sealed |
| Termination Rows | 螺钉拧紧 | Connector - Cable | socket |
| Termination Style | Axial Screw | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 7 |
| Number of Positions | 7 | 1st Connector Gender | Male |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | 2.5...4mm2 |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
Product Info
| Spg | 10 | Type | PanelPlug |
| Series | Buccaneer | Manufacturer | 900Series |
| Product Type | Connectors | Adapter Series | Buccaneer 900 |
| Number of Units | 1 | Connection Method | 4 |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
