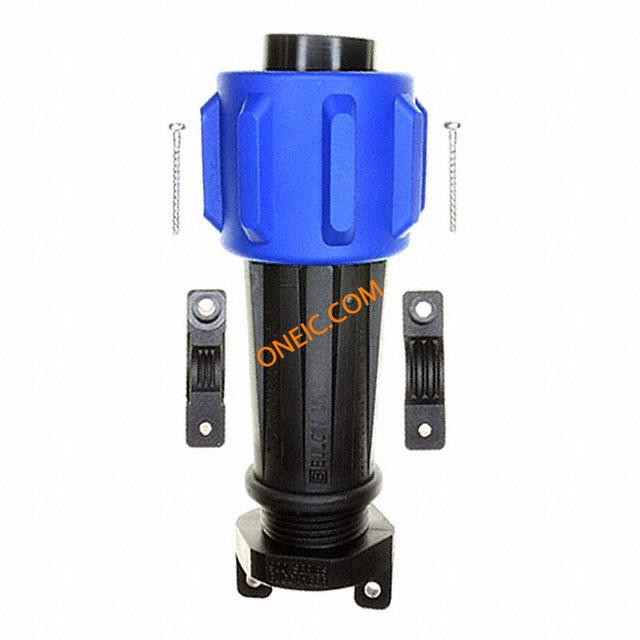

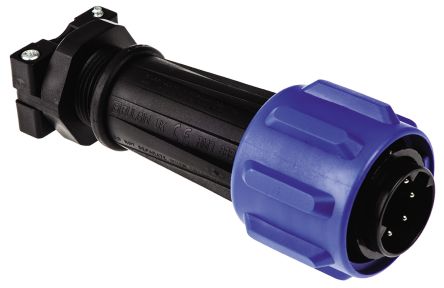

PXA911/07/P
| Manufacturer | |
| Description | Standard Circular Connector 7 POLE FLEX PLUG CONN PLUG 7POS CABLE PIN 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 7 POS Screw ST Cable Mount 7 Terminal 1 Port PLUG, FREE, 7WAY CONN PLUG 7POS INLINE PIN Connector;Plug;7;146mm;50mm(Min.);20to22mm;32A;430V;-40degC Connector: circular; plug; male; PIN:7; Buccaneer 900; for cable Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 插头 , 螺纹接合 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 430VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2kV |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Width | :46mm | Length | :127mm |
| Weight | 5.832000 oz | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 13-10 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 20-22mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | Polyamide | Package Quantity | 10 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Axial Screw | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 7 |
| Contact Termination | :Screw | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 10 | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | Cable Clamp | Manufacturer | 900Series |
| Product Type | Connectors | Adapter Series | Buccaneer 900 |
| Number of Units | 1 | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
PX0921/07/S
Bulgin
Standard Circular Connector 7 POLE IN-LINE SKT CONN RCPT 7POS INLINE SKT Conn Buccaneer SKT 7 POS Screw ST Cable Mount 7 Terminal 1 Port CableConnector,In-Line;7;;Socket;In-LineFlex;Screw; Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Coupling socket Buccaneer 900, 7-pole 7, PX0921/07/S, Bulgin Bulgin PX09 系列 900 7路 电缆安装 直向 连接器 插座 , 母触点, 快速连接接合
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器
PXA921/07/S
Bulgin
Standard Circular Connector 7 POLE IN-LINE SKT CONN RCPT 7POS INLINE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, IN-LINE, 7WAY CableConnector,In-Line;7;Socket;6to8mmDia;In-LineFlex;Screw;32A Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点

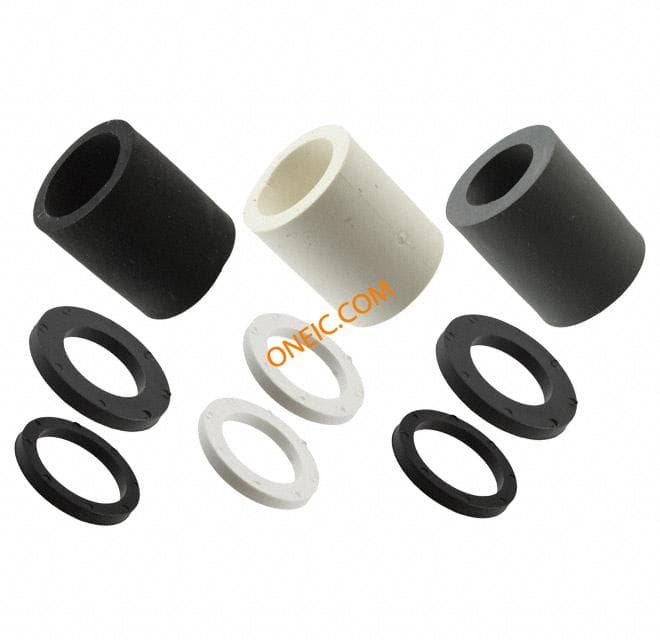

PXA980
