PX0941/07/S
| Manufacturer | |
| Description | Standard Circular Connector 7P PNL MOUNT SKT CONN RCPT 7POS PNL MNT SKT 7 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 7 POS Screw Panel Mount 7 Terminal 1 Port SOCKET, FLANGE, 7WAY Connector;Socket;7;ScrewTerminal;32A;430VAC/VDC;10Milliohms(Max.) Connector: circular; socket; female; PIN:7; Buccaneer 900; IP68 Appliance socket with flange, 7-pole 7, PX0941/07/S, Bulgin Bulgin Buccaneer 系列 7路 面板安装 连接器 , 母触点 |
| Category |
Business
| Other Names | 708-1223 | Product Category | Standard Circular Connector |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 430VAC/DC | Voltage - Working | :600V |
| Current Rating (Max) | 32A | ||
Mechanical
| Depth | :60mm | Width | :70mm |
| Length | :51mm | Weight | 0.08 |
| Packaging | Bulk | Wire Gauge | 13-10 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Mounting Type | Panel Mount, Flange | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Flange |
| Insertion Angle | :- | Locking Feature | threaded joint, external thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | Polyamide | Package Quantity | 10 |
| Primary Material | Sealed | Connector - Cable | socket |
| Termination Style | Axial Screw | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 7 |
| Contact Termination | :Screw | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 10 | Type | PanelSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Manufacturer | 900Series | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
| Application Specifics | Commercial | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
PX0911/07/P
Bulgin
Standard Circular Connector 7 POLE FLEX PLUG CONN PLUG 7POS CABLE PIN Buccaneer 900 Series Flex Body Plug (7 pos) Standard Cable 7-13mm Screw Term Conn Buccaneer PL 7 POS Screw ST Cable Mount 7 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 7POS, CABLE CONN PLUG 7POS INLINE PIN Buccaneer900SeriesFlexBodyPlug(7pos)StandardCable7-13mmScrewTerm Connector: circular; plug; male; PIN:7; Buccaneer 900; for cable Cable plug Buccaneer 900, 7-pole 7, PX0911/07/P, Bulgin Bulgin PX09 系列 900 7路 电缆安装 直向 连接器 插头 , 公触点, 快速连接接合

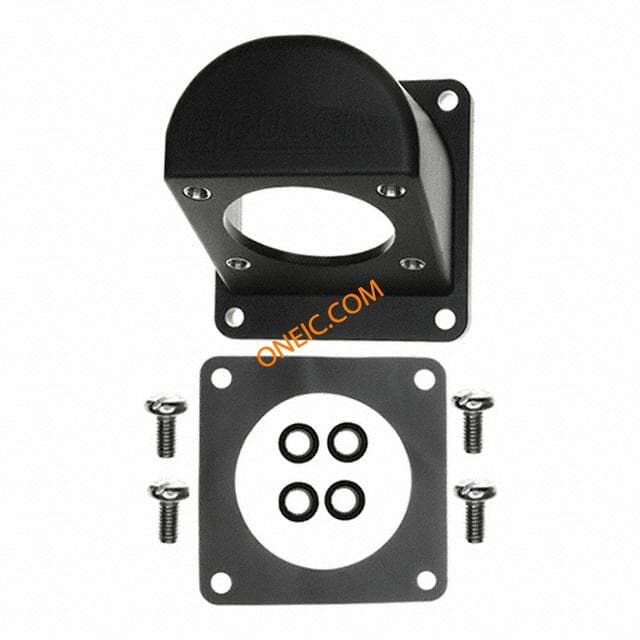

PX0950
