PX0848/B
| Manufacturer | |
| Description | USB Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB B TYPE IP68; A AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONNECTOR, USB B, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBBTYPEIP68,AATREAROFPANEL Bulgin USB 系列 PX0848 1 端口 直 公 USB 2.0, 面板安装, 30 V 交流, 1A |
| Category |
Business
| Product | USB Type A / Type B Connectors | Product Category | USB Connectors |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | :30V | Voltage - Supply | USB |
| Contact Resistance | :30mohm | Current Rating (Max) | 1 A |
Mechanical
| Color | Black | Weight | 0.024 |
| Mounting Type | Straight | Connector Type | USB Type B Receptacle on front, USB Type A Receptacle on rear |
| Contact Finish | Gold | Mounting Style | Panel |
| Contact Material | Copper Alloy | Termination Style | Solder |
| Number of Contacts | 4 | Contact Termination | :Panel Mount |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | Female | Series | :Buccaneer |
| Features | Sealing caps to maintain IP68 rating when connectors are not in use | Number of Ports | 2 |
| Convert To (Adapter End) | USB - A, Receptacle | Convert From (Adapter End) | USB - B, Receptacle |
Environmental
| Mating Cycles | :1000 | NEMA Frame Size | :IP68 |
| Operating Temperature | 0 C to + 70 C | ||
Documents & Media
Similar Parts
PX0840/B/2M00
Bulgin
Cable Assemblies 2M SEALED B-STD A CABLE PLUG IP68 USB B-A 2M Buccaneer B to USB A IP68 patchcord,2m USB Cables / Firewire Cables 2M SEALED B-STD A Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp CABLE ASSEMBLY, USB A TO B, IP68, 2M Connector,Circular;1.5Mbsto480Mbs;4;DustandWaterproof;2m;38.1mm Adapter cable; USB A plug, USB B plug (sealed); USB Buccaneer Cable assembly with 2 m USB B to USB A 4, PX0840/B/2M00, Bulgin Bulgin 2m 黑色 电缆组件, USB B 至 USB A
PX0841/AB/5M00
Bulgin
Cable Assemblies 5M SEALED A-B CABLE DUAL PLUG IP68 USB A-B 5M Connector; USB Buccaneer; Sealed A and B Types; 5M USB Cables / Firewire Cables 5M SEALED A-B Cable Assembly PVC 5m 20AWG/25AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp Connector,USBBuccaneer,SealedAandBTypes,5M
PX0840/A/5M00
Bulgin
Cable Assemblies 5M SEALED A-STD B CABLE PLUG IP68 USB A-B 5M Buccaneer A to USB B IP68 patchcord,5m USB Cables / Firewire Cables 5M SEALED A-STD B Cable Assembly PVC 5m 20AWG/25AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A TYPE, 5M, IP68 Connector,USBBuccaneer,SealedAType,5M Cable assembly with 5 m USB A to USB B 4, PX0840/A/5M00, Bulgin Bulgin 5m 黑色 电缆组件, USB A 至 USB B
PX0840/B/3M00
Bulgin
Cable Assemblies 3M SEALED B-STD A CABLE PLUG IP68 USB B-A 3M Connector; USB Buccaneer; Sealed B Type; 3M USB Cables / Firewire Cables 3M SEALED B-STD A Cable Assembly PVC 3m 22AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp USB 2.0, CABLE ASSEMBLY, TYPE B TO A Connector,USBBuccaneer,SealedBType,3M Bulgin 3m 黑色 USB 电缆组件, USB 2.0
PX0841/AB/3M00
Bulgin
Cable Assemblies 3M SEALED A-B CABLE DUAL PLUG IP68 USB A-B 3M Cable; USB; 1.5 to 480; 4; Double Ended; 3 m; 38.1 mm; PCBs USB Cables / Firewire Cables 3M SEALED A-B Cable,USB;1.5to480;4;DoubleEnded;3m;38.1mm;PCBs
PX0840/B/5M00
Bulgin
Cable Assemblies IP68 USB B-USB A 5M CABLE PLUG IP68 USB B-A 5M Buccaneer B to USB A IP68 patchcord,5m USB Cables / Firewire Cables IP68 USB B-USB A 5M Cable Assembly PVC 5m 20AWG/25AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB B TYPE, 5M, IP68 CableAssembly;USB-TypeBtoUSB-TypeA;IP68;5m;38.1mm Adapter cable; USB A plug, USB B plug (sealed); USB Buccaneer Cable assembly with 5 m USB B to USB A 4, PX0840/B/5M00, Bulgin Bulgin 5m 黑色 电缆组件, USB B 至 USB A
PX0840/A/2M00
Bulgin
Cable Assemblies 2M SEALED A-STD B CABLE PLUG IP68 USB A-B 2M Buccaneer A to USB B IP68 patchcord,2m USB Cables / Firewire Cables 2M SEALED A-STD B Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A TYPE, 2M, IP68 Assembly,Cable;2m Adapter cable; USB B plug, USB A plug (sealed); USB Buccaneer Cable assembly with 2 m USB A to USB B 4, PX0840/A/2M00, Bulgin Bulgin 2m 黑色 电缆组件, USB A 至 USB B
PX0841/AB/2M00
Bulgin
Cable Assemblies 2M SEALED A-B CABLE DUAL PLUG IP68 USB A-B 2M Connector; USB Buccaneer; Sealed A and B Types; 2M USB Cables / Firewire Cables 2M SEALED A-B Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A/B TYPE, 2M, IP68 Connector,USBBuccaneer,SealedAandBTypes,2M Bulgin 2m 黑色 USB 电缆组件, USB 2.0
PX0840/A/3M00
Bulgin
Cable Assemblies 3M SEALED A-STD B CABLE PLUG IP68 USB A-B 3M Connector; Circular; 1.5 Mbs to 480 Mbs; 4; Dust and Waterproof; 3 m; 38.1 mm USB Cables / Firewire Cables 3M SEALED A-STD B Cable Assembly PVC 3m 22AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp Connector,Circular;1.5Mbsto480Mbs;4;DustandWaterproof;3m;38.1mm Adapter cable; USB B plug, USB A plug (sealed); USB Buccaneer Bulgin 3m 黑色 USB 电缆组件, USB 2.0

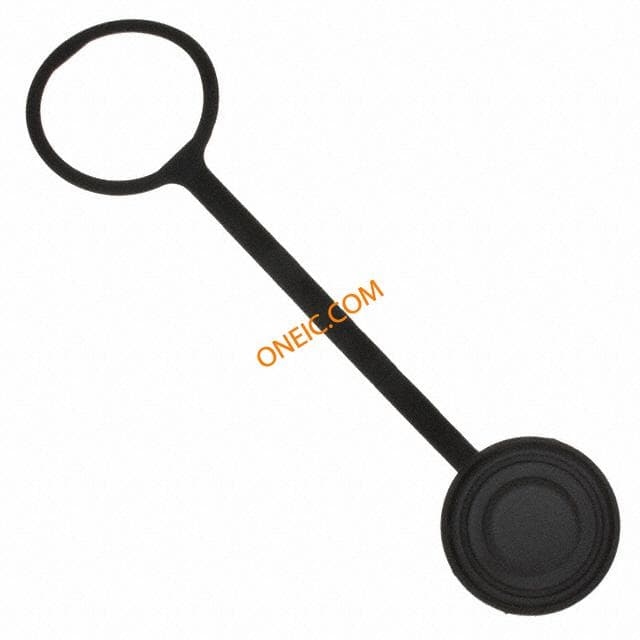

PX0711
