PX0840/A/3M00
| Manufacturer | |
| Description | Cable Assemblies 3M SEALED A-STD B CABLE PLUG IP68 USB A-B 3M Connector; Circular; 1.5 Mbs to 480 Mbs; 4; Dust and Waterproof; 3 m; 38.1 mm USB Cables / Firewire Cables 3M SEALED A-STD B Cable Assembly PVC 3m 22AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp Connector,Circular;1.5Mbsto480Mbs;4;DustandWaterproof;3m;38.1mm Adapter cable; USB B plug, USB A plug (sealed); USB Buccaneer Bulgin 3m 黑色 USB 电缆组件, USB 2.0 |
| Category |
Business
| Product | USB Assemblies | Product Category | Cable Assemblies |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94-V0 |
Electrical
| Speed | 1.5Mbsto480Mbs | Voltage Rating | 30 VAC |
| Number of Poles | 4 | Contact Resistance | 30Milliohms(Max.) |
| Current Rating (Max) | 1 A | Number of Conductors | 4 |
Mechanical
| Color | Black | Length | 3 m |
| Sealed | DustandWaterproof | Weight | 0.17 kg |
| Diameter | 38.1mm | Shielding | Shielded |
| Wire Gauge | 28 | Cable Length | 3m |
| Jacket Color | Black | 1st Connector | USB Type A, IP 68 |
| 2nd Connector | USB Type B | Shell Plating | Nickel |
| Wire Diameter | 28AWG | Connector Type | USBType-A |
| Contact Finish | 30μin.Gold | Number of Pins | 1 |
| Shell Material | Steel | Locking Feature | internal thread |
| Insulation Color | 黑色 | Package Quantity | 5 |
| Connector - Cable | Straight | 2nd Connector Type | USBType-B |
| Material - Insulation | GlassFilledPBT | Jacket (Insulation) Material | Polyvinyl Chloride (PVC) |
| 2nd Connector Number of Positions | 1 | ||
Product Info
| Spg | 5 | USB | USB 2.0 |
| Type | USB 2.0 | Style | Industrial Environments - IP68 |
| Gender | Male / Male | Series | Buccaneer |
| Function | Connector Cable | Configuration | A Male to B Male (Circular Coupling) |
| Adapter Series | USB Buccaneer | Specifications | USB 2.0 |
| Number of Units | 1 | Other Specifications | adapter cable |
Environmental
| Ingress Protection | IP68 | Operating Temperature | 0to+70°C |
Documents & Media
Similar Parts
PX0845/B
Bulgin
Ethernet & Telecom Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT CONN RCPT IP68 USB B PNL MT PCB USB B Type PCB Mount Conn IP68 Modular Connectors / Ethernet Connectors PANEL MT USB B TYPE PCB DIRECT MOUNT Conn USB F 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, PANEL, USB, TYPE B, PCB USBBuccaneerRearPanelMountConnectorPCBDirectMountIP68TypeB Bulgin 电缆组件, USB B
PX0848/B
Bulgin
USB Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB B TYPE IP68; A AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONNECTOR, USB B, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBBTYPEIP68,AATREAROFPANEL Bulgin USB 系列 PX0848 1 端口 直 公 USB 2.0, 面板安装, 30 V 交流, 1A
PX0848/A
Bulgin
USB Connectors PANEL MT USB A TYPE CONN RCPT IP68 USB A REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB A TYPE IP68; B AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port USB TYPE A, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBATYPEIP68,BATREAROFPANEL Bulgin PX0848 USB 系列 1 端口 USB 2.0 直 插头, 面板安装, 30 V 交流, 1A

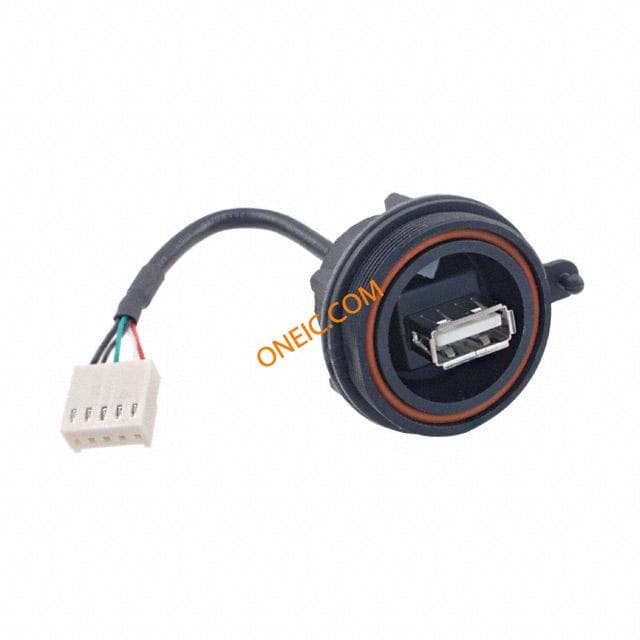

PX0843/A
