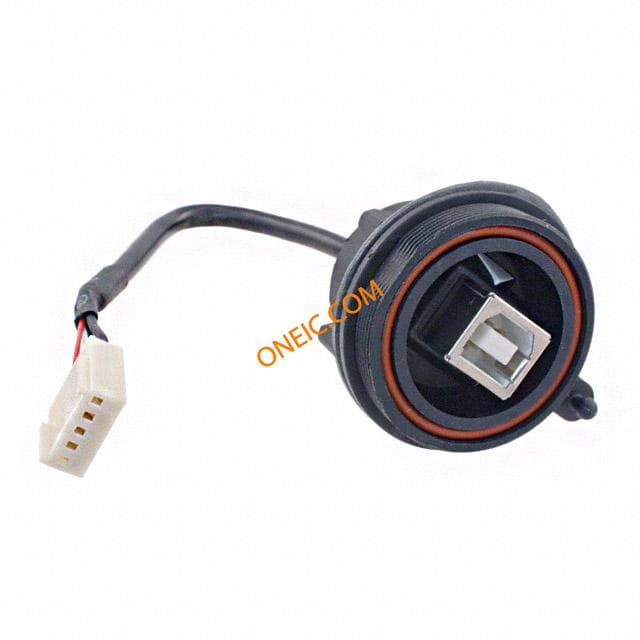

PX0843/B
| Manufacturer | |
| Description | CONN RCPT IP68 USB B PNL - 5POS USB B Type Chassis Conn & Lead IP68 USB Connectors PANEL MT USB B TYPE Cable Assembly PVC 0.132m 5 POS USB F Crimp CONNECTOR, USB, TYPE B, PANEL, IP68 COMPUTER CABLE, USB 2.0, 132MM, BLACK USBBuccaneerFrontPanelMountConnectorIP68TypeB Socket; USB B; USB Buccaneer; for panel mounting, rear side nut Appliance plug, USB B to socket, 5-pole 4, PX0843/B, Bulgin Bulgin 电缆组件, USB B 至 压接插座 |
| Category |
Business
| Product | USB Type B Connectors | Product Category | USB Connectors |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | Tariff No | 85366990 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 30 V | Voltage - Supply | USB 2.0 |
| Current Rating (Max) | 1 A | Number of Conductors | 4Conductors |
Mechanical
| Color | Black | Length | 0.49' (150mm) |
| Weight | 0.02 | Shielding | Shielded |
| Cable Type | Round | Cable Group | :USB |
| Termination | Leadwires | Cable Length | :5.196" |
| Jacket Color | :Black | 1st Connector | Female USB B |
| 2nd Connector | Crimp Socket | Color - Cable | :Black |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Rectangular 5 pos Plug to USB B Male Plug | Contact Finish | Gold |
| Mounting Style | Panel | Locking Feature | threaded joint |
| Panel Thickness | max 5.2mm | Contact Material | Copper Alloy |
| Housing Material | Steel | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | socket |
| Termination Style | Crimp | 2nd Connector Type | 5-WayCrimp |
| Color - Connectors | Black | Mating Orientation | ScrewCoupling |
| Number of Contacts | 5 | Contact Termination | :Panel Mount |
| Number of Positions | 4 | Material - Insulation | Nylon6 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 25 | USB | USB 2.0 |
| Type | USB | Usage | Industrial Environments - IP68 |
| Gender | Female | Series | Buccaneer |
| Features | BTypeUSB,EMIProtection | Adapter Series | USB Buccaneer |
| Number of Ports | 1 | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 |
| Temperature Rating | 0to+70°C | Operating Temperature | 0 C to + 70 C |
