PX0745/S
| Manufacturer | |
| Description | Standard Circular Connector 7 POLE FLEX SKT CONN PLUG 7POS CABLE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FREE, 7 POLE CONN PLUG 7POS INLINE SKT Connector,StandardBuccaneer;Socket;7;69.0mm;38.1mm;3.5to9mm;3A Cable socket, 7-pin 7, PX0745/S, Bulgin Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 277VAC/DC | Voltage - Working | :277V |
| Contact Resistance | :10mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Length | :65mm | Weight | 0.036 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| Wire Gauge | 16 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Material - Body | :Glass Filled Nylon (Polyamide) |
| Contact Material | Brass | Housing Material | GlassFilledPolyamide |
| Primary Material | Sealed | Termination Style | Screw |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Diameter - Outside | :38.1mm | Mating Orientation | Threaded |
| Number of Contacts | 7 | Contact Termination | :Screw |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8.1mm |
Product Info
| Type | CableSocket | Gender | :Receptacle |
| Series | Buccaneer | Features | ScrewLocking |
| Product Type | Connectors | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

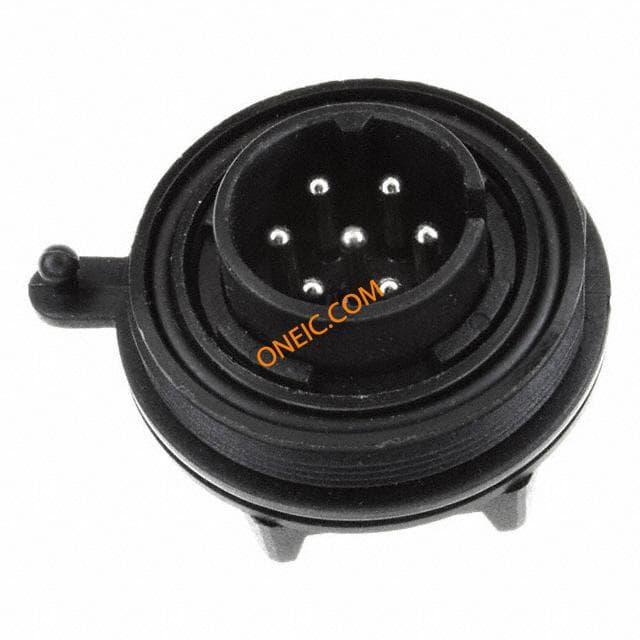

PX0744/P
Bulgin
Standard Circular Connector 7 POLE CHAS MT PLG CONN RCPT 7POS PNL MNT PIN 7 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 7 POS Screw ST Panel Mount 7 Terminal 1 Port PLUG, PANEL, 7 POLE Connector;Pin;7;16AWG;Screw;3A;250V;10Milliohms(Max.);Panel Panel-mount male receptacle, 7-pin 7, PX0744/P, Bulgin Bulgin Buccaneer 系列 7路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0745/S
Bulgin
Standard Circular Connector 7 POLE FLEX SKT CONN PLUG 7POS CABLE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FREE, 7 POLE CONN PLUG 7POS INLINE SKT Connector,StandardBuccaneer;Socket;7;69.0mm;38.1mm;3.5to9mm;3A Cable socket, 7-pin 7, PX0745/S, Bulgin Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点

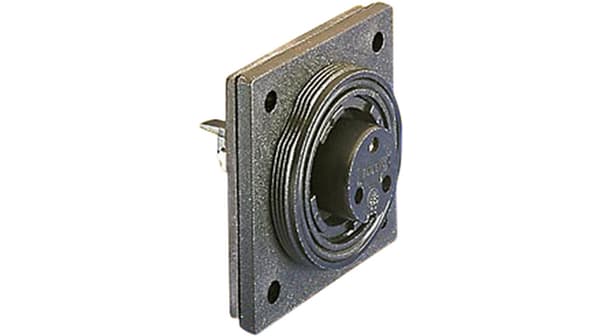

PX0768/P
Bulgin
Standard Circular Connector 7 POLE FLANGE PLUG LOW PROFILE SCREW CONN RCPT 7POS PNL MNT PIN Connector;LowProfileFlangeMounting;PinContacts;7Pole;ScrewTerm. Panel Mount Plug Standard Buccaneer® with flange 7, PX0768/P, Bulgin Bulgin PX0 系列 7路 法兰安装 直向 连接器 插座 , 公触点, 快速连接接合

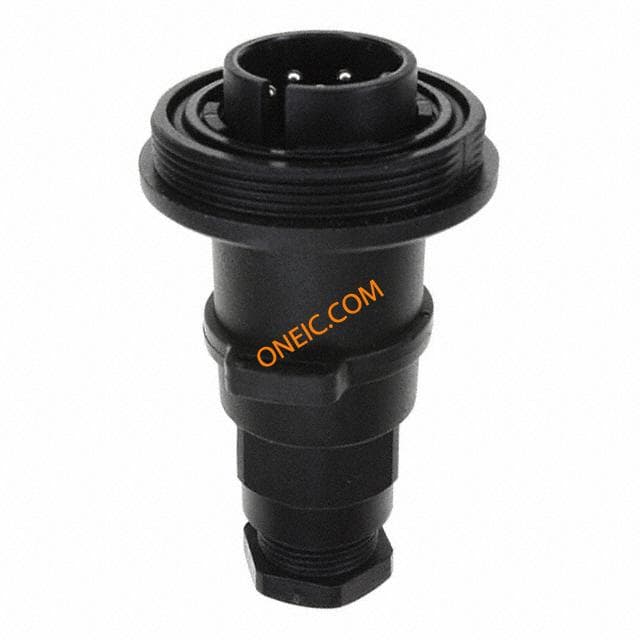

PX0746/P
