PX0718/1/15/ST
| Manufacturer | |
| Description | ACパワーエントリモジュール AC 1 INLET/OUTLET FUSED/SNAP FIT MULTI-WAY IEC FUSED PANEL OUTLET C13, C14 Male to Female Straight Snap-In IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules AC 1 INLET/OUTLET FUSED/SNAP FIT INLET/OUTLET, IEC, FUSED, 1OUTLET Bulgin C13、C14 嵌入式 直向 插头至插座 IEC 插头, 焊接端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlet/Outlet Combinations | Product Category | AC Power Entry Modules |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Material Flammability Rating | :UL94V-0 |
Electrical
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Dielectric Strength | :2kV |
| Current Rating (Max) | 10A | Insulation Resistance | :100Mohm |
Mechanical
| Width | :35.0mm | Height | :57.1mm |
| Length | :57.1mm | Weight | 0.04 |
| Material | :Glass Filled Thermoplastic | AC Outlets | :1 |
| Termination | Solder | Mounting Type | Straight |
| Terminal Type | :4.8mm x 0.8mm | Connector Type | :IEC |
| Contact Finish | :Tin | Panel Thickness | :1.50mm |
| Connector - Cable | C13, C14 | Color - Connectors | :Black |
| Depth Behind Panel | :28.2mm | Panel Cutout Shape | :32.5 x 54.2mm |
| Contact Termination | :Solder | Panel Cutout Dimensions | :32.3mm |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Fused | Yes | Gender | Male to Female |
| Series | * | ||
Environmental
| Operating Temperature | :+70°C | ||
Similar Parts
PX0587
Bulgin
CONN AC PLUG STR FEMALE C13 Female Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable straight skt,10A 240Vac AC Power Entry Modules AC POWER SOCKET Conn Power F 3 POS Screw ST Cable Mount 3 Terminal 1 Port SOCKET, IEC, FREE, 10A Blackrewireablestraightskt,10A240Vac Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable device socket C13 black, PX0587, Bulgin Bulgin C13 电缆安装 直向 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

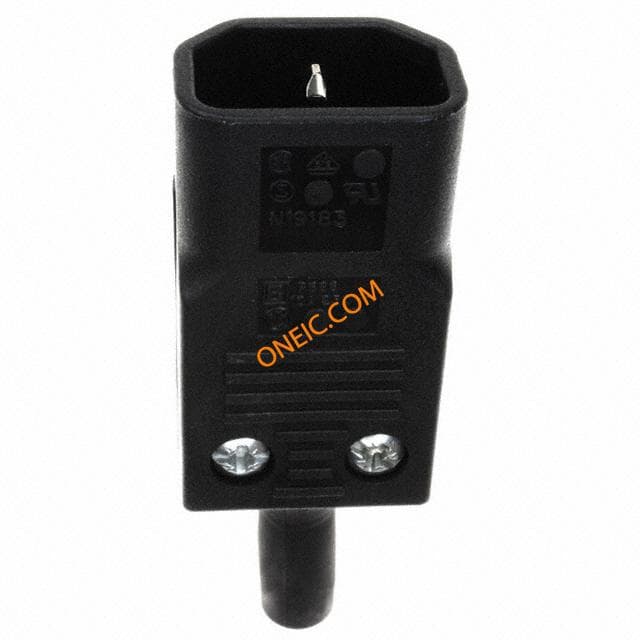

PX0686
