点击放大查看

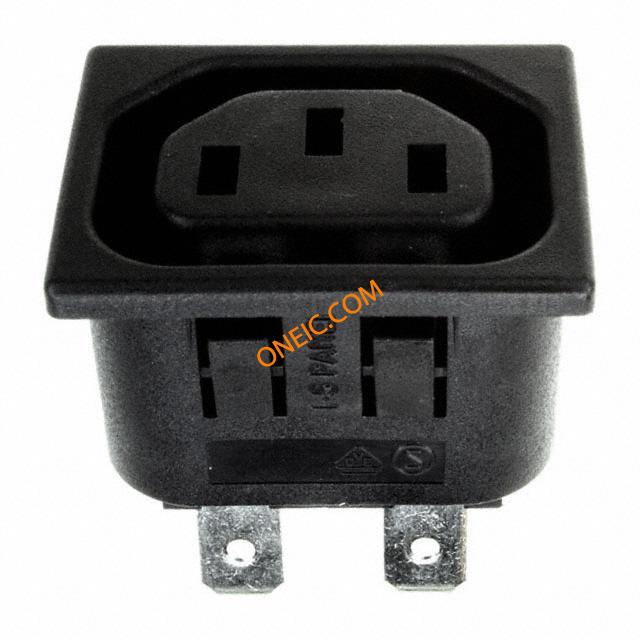

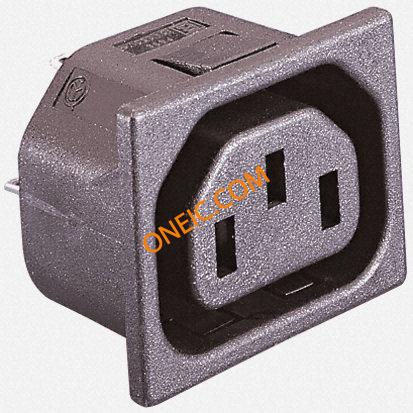

PX0695/15/63
| Manufacturer | |
| Description | CONN AC OUTLET 6.3MM TAB SNAP IN C13 Female Straight Snap-In IEC Connector, Rated At 10A, 250V ac AC Power Entry Modules SNAP-IN .25 FASTON Power Entry Module Unfiltered F 3 POS 250VAC 15A ST 1 Port OUTLET, IEC, SNAP-FIT IECconnector,Snapfittopaneloutlet,Panelsize1.5mm,6.3mmtabs,10A250V Connector: IEC 60320,AC mains; C13 (F); socket; female; 10A Bulgin C13 嵌入式 直向 插座 IEC 插头, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Outlets | Product Category | AC Power Entry Modules |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, IMQ, SEMKO, UL, VDE |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Number of Poles | 3 | Switch Function | Not Switched |
| Current Rating (Max) | 10A | Connector - Voltage Input | C13 (F) |
Mechanical
| Color | Black | Weight | 0.0159 |
| AC Outlets | :1 | Lead Style | 6.3x0.8mm connectors |
| Termination | :Solder / Push-On | Contact Type | Socket |
| Body Material | polyamide | Mounting Type | Panel Mount, Snap-In |
| Terminal Type | :6.35mm x 0.8mm | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Tin | Mounting Style | Snap In |
| Connector Style | IEC 320-C13 | Fuseholder Type | Drawer Not Required |
| Panel Thickness | :1.5mm | Contact Material | Brass |
| Housing Material | Nylon | Package Quantity | 100 |
| Connector - Cable | C13 | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Shape | :24.77 x 32.26mm | Contact Termination | :Solder |
| Number of Positions | 3 | Mounting Hole Diameter | :3.5mm |
| Mounting Panel Thickness | :40mm | Material - Housing & Prism | :Black nylon |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 100 | Type | Outlet |
| Fused | No | Gender | Female |
| Series | :- | Number of Units | 1 |
Environmental
| Operating Temperature | - 40 C to + 70 C | ||
