点击放大查看
PX0416/5M00
| Manufacturer | |
| Description | RF Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 5M CONN SMB PLUG - RG-174 5M SMB IP68 plug + 5m RG174 cable RF Connectors / Coaxial Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 5M Cable Assembly Coaxial 5m SMB PL CABLE, PLUG SMB, 5M CircularCableConnector;5m;-20to80degC;ULListed Bulgin 电缆安装 SMB 连接器, 插头, 预接线端接, RG174 |
| Category |
Business
| Product | Connectors | Other Names | 708-1271 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Impedance | 50 Ohm | Frequency - Max | 4GHz |
| Contact Resistance | :6mohm | Insulation Resistance | 1000 MOhms |
| Impedance - Unbalanced/Balanced | :RG174 | ||
Mechanical
| Color | Black | Length | 196.8" (5.0m) 16.4' |
| Weight | 0.082 | Material | PX0414Connector |
| Cable Type | RG-174 | Body Finish | Gold |
| Cable Group | :Audio, Video | Shell Style | Plastic |
| Cable Length | :16.4ft | Contact Type | Pin |
| Jacket Color | :Black | 1st Connector | SMB Plug Female Socket |
| 2nd Connector | Cable (Round) | Body Material | Brass |
| Angle of Throw | Straight | Connector Type | :SMB Plug, 50ohm |
| Contact Finish | Gold | Contact Material | Brass |
| Primary Material | Sealed | Termination Style | Crimp |
| Diameter - Outside | :19mm | Length - Lead Wire | :5000mm |
| Mating Orientation | Threaded | Dielectric Material | Teflon |
Product Info
| Type | CablePlug | Style | SMB to Cable |
| Gender | Female to Cable | Series | :Buccaneer |
| Features | Shielded | RF Family/Standard | SMB |
Environmental
| Ingress Protection | IP68 | Operating Temperature | -20°C ~ 80°C |
Documents & Media
Similar Parts
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

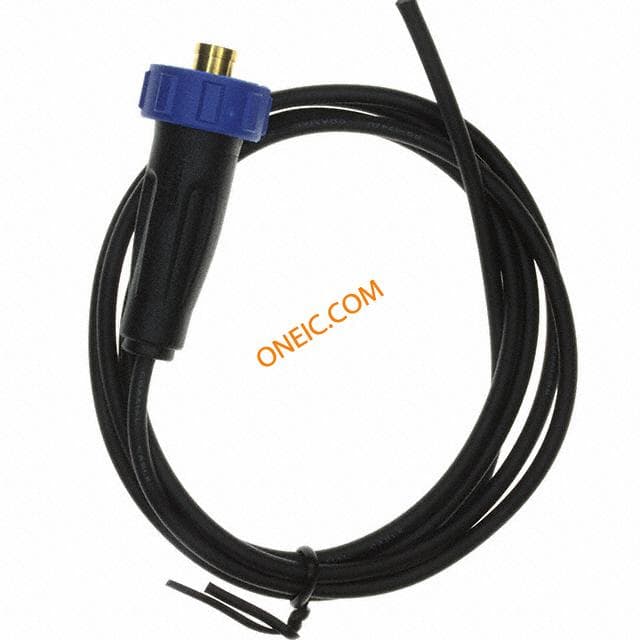

PX0416/1M00
