PX0415/1
| Manufacturer | |
| Description | RF Connectors RE-WIREABLE CONN WITH SMB PLUG CONN SMB PLUG STR 50 OHM SMB IP68 cable plug RF Connectors / Coaxial Connectors RE-WIREABLE CONN WITH SMB PLUG Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold PLUG, SMB, REWIREABLE CircularCableConnector;-20to80degC;ULListed Connector: SMB; plug; internal thread; Buccaneer SMB; for cable Bulgin 直向 50Ω 电缆安装 SMB 连接器, 插头, 压接端接, RG174 |
| Category |
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Frequency | 0 → 4GHz | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Contact Resistance | :6mohm |
| Insulation Resistance | 1000 MOhms | Impedance - Unbalanced/Balanced | :RG174 |
Mechanical
| Weight | 0.01591 | Packaging | Bulk |
| Cable Type | RG-174 | Wire Gauge | RG174 |
| Body Finish | Gold | Cable Group | RG-174 |
| Shell Style | Plastic | Termination | Crimp |
| Contact Type | Pin | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug, Female Socket |
| Contact Finish | Gold | Fastening Type | Snap-On |
| Mounting Style | for cable | Connector Style | SMB |
| Locking Feature | internal thread | Contact Material | Brass |
| Housing Material | Polyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Crimp | Diameter - Outside | :19mm |
| Mating Orientation | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | :Straight Plug | 1st Connector Mounting Type | :Cable |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Spg | 25 | Type | CablePlug |
| Gender | Plug | Series | :Buccaneer |
| Adapter Series | Buccaneer SMB | Number of Units | 1 |
| RF Family/Standard | SMB | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -20°C ~ 80°C |
Documents & Media
Similar Parts

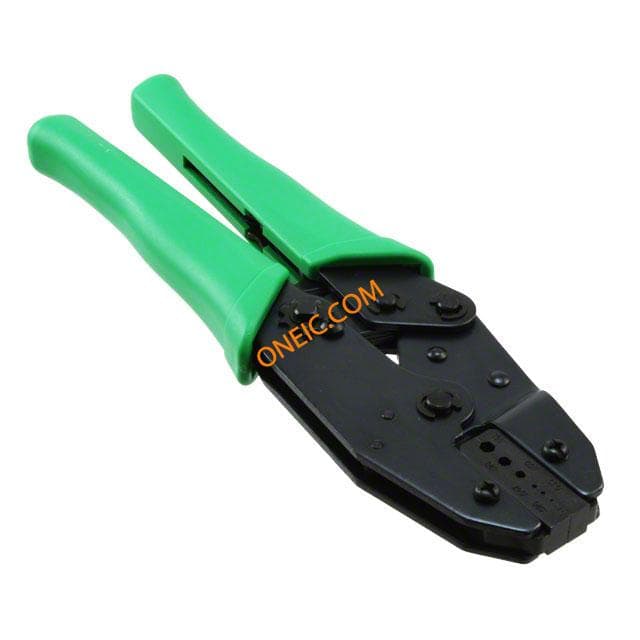

14319
Bulgin
Crimpers HAND CRIMP TOOL FOR SMB CONNECTORS TOOL HAND CRIMP FOR SMB HandcrimptoolforSMB
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

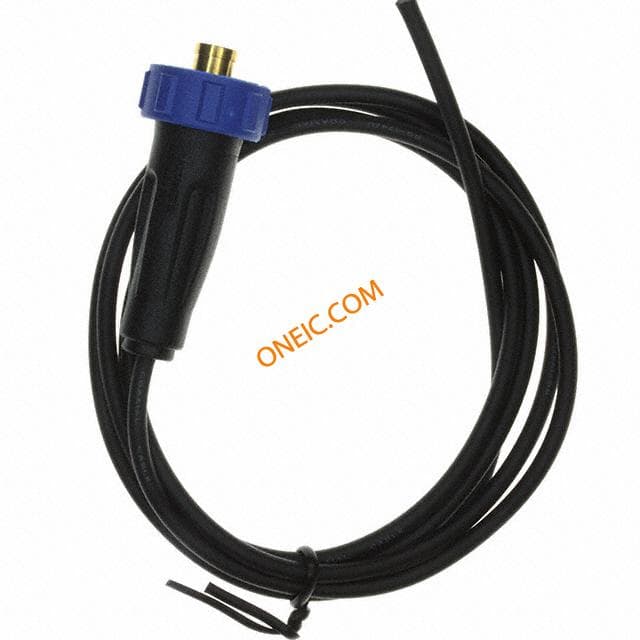

PX0416/1M00
