点击放大查看
PX0413/06P/PC
| Manufacturer | |
| Description | Standard Circular Connector PCB pin con - 6 pole CONN RCPT 6POS PNL MNT PCB PIN 6 Pole Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 6 POS Solder ST Thru-Hole 6 Terminal 1 Port PLUG, PCB, 6POLE Connector,CircularIP68;6;Crimp,SolderandPCB;5A;125VAC/VDC;Gold Bulgin Buccaneer 系列 6路 通孔 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366930 | Approval Agency | :CSA, UL, VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 125VAC/DC | Voltage - Working | :125V |
| Contact Resistance | :5mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Weight | 0.007 | Material | :Nitrile |
| Packaging | Bulk | Wire Gauge | 22-26 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Panel Mount, Bulkhead; Through Hole | Shell Plating | Gold |
| Angle of Throw | Straight | Cable Diameter | 3-7mm |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Insertion Angle | :- | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Primary Material | Sealed | Termination Style | Crimp / Solder |
| 1st Contact Gender | Male | Mating Orientation | Threaded |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | PanelPlug | Gender | :Plug |
| Series | Buccaneer | Manufacturer | 400Series |
| Product Type | Connectors | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 80°C | ||
Documents & Media
Similar Parts

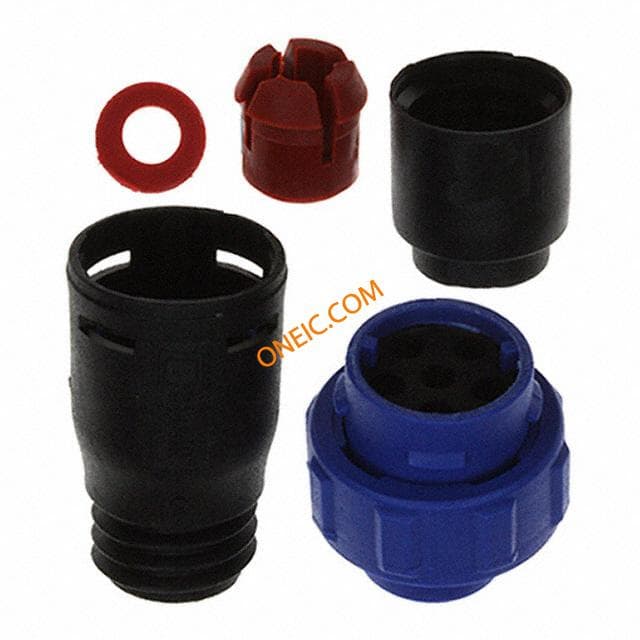

PX0410/06S/4550
