PX0412/10S
| Manufacturer | |
| Description | Standard Circular Connector 10 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 10POS SKT 10 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 10 POS Crimp ST Panel Mount 10 Terminal 1 Port SOCKET, CHASSIS, 10WAY Connector;Socket;10;24to28AWG;CrimpandSolder;1A;50VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:10; w/o terminals; IP68 appliance socket Buccaneer 400, 10-pole 10, PX0412/10S, Bulgin Bulgin Buccaneer 系列 10路 面板安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 1A |
| Insulation Resistance | :10Mohm | Connector - Voltage Input | w/o terminals |
Mechanical
| Weight | 0.004 | Material | :Nitrile |
| Packaging | Bulk | Wire Gauge | :24AWG |
| Orientation | Keyed | Shell Style | Receptacle |
| Size - Body | Ø22 x 19.9mm | Termination | Crimp |
| Contact Type | Crimp and Solder Cup | Body Material | polyamide |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Angle of Throw | Straight |
| Connector Type | Receptacle for Female Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Shell Material | Plastic | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Package Quantity | 25 | Primary Material | Sealed |
| Connector - Cable | socket | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - AWG | :28AWG |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :7mm |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Type | PanelSocket | Gender | :Receptacle |
| Series | Buccaneer | Manufacturer | 400Series |
| Product Type | Connectors | Adapter Series | Buccaneer 400 |
| Number of Units | 1 | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts

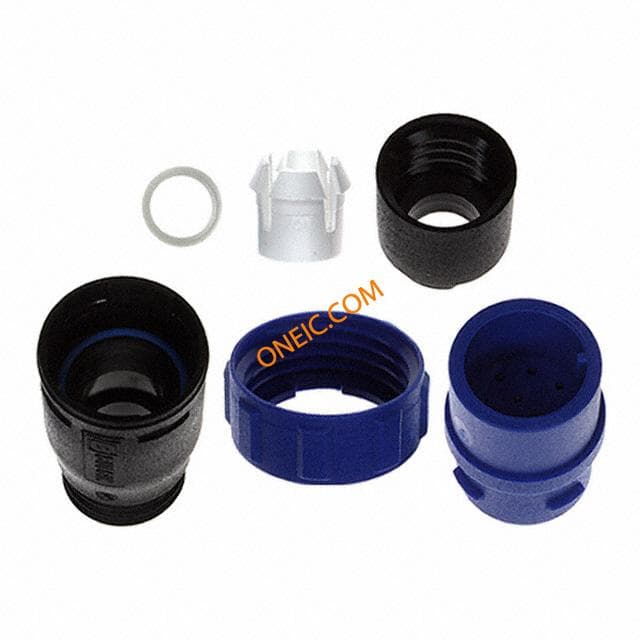

PX0410/10P/6065
