PX0411/12P/6065
| Manufacturer | |
| Description | Standard Circular Connector 12 POLE IN-LINE PLUG CONN HSNG RCPT IN-LINE 12POS PIN 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp ST Cable Mount 12 Terminal 1 Port PLUG, IN-LINE, 12WAY CableConnector,In-Line;12;Plug;6.0to6.5mm;FlexIn-LineBody;1A;50 Coupling plug Buccaneer 400, 12-pole 12, PX0411/12P/6065, Bulgin Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 1A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Weight | 0.005 | Material | :Nitrile |
| Packaging | Bulk | Wire Gauge | :24AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp | Contact Type | Crimp and Solder Cup |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 6-6.5mm | Connector Type | Receptacle for Male Contacts |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Shell Material | Plastic |
| Insertion Angle | :- | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Primary Material | Sealed | Termination Style | Crimp / Solder |
| 1st Contact Gender | Male | Mating Orientation | Threaded |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Wire Gauge or Range - AWG | :28AWG | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :7mm | ||
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Manufacturer | 400Series | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts
SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格
PX0410/12S/6570
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 12POS SKT Conn Buccaneer SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port 400SERIESBUCCANEERFLEXCABLECONNECTOR

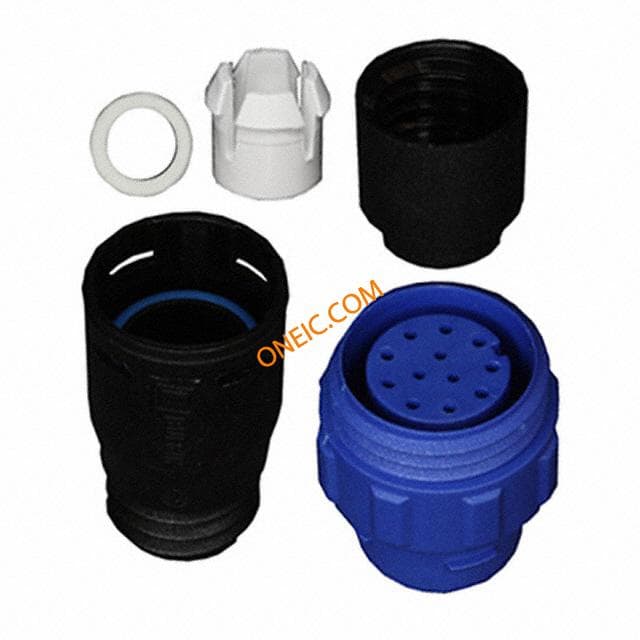

PX0411/12S/6065
