MPI002/TERM/RD
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red,IP66 Pushbutton Switches RED RING SCREW TERM SWITCH, ILLUM RED Switch,RingIlluminated;Red;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/RD, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流 |
| Category |
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85365007 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPST-NO | Operation | PushtoMake |
| Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | Voltage Rating | 24V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Contact Resistance | :100mohm | Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED Forward Voltage | :1.85V | Current Rating (Max) | 50mA (DC) |
| Current - Max/Contact | :50mA | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | :Off-(On) | Contact Rating (Current) | 0.05 A @ 24 V dc |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :24V |
| Illumination Voltage (Nominal) | 1.85 VDC | Current - DC Forward (If) (Max) | :20mA |
Mechanical
| Depth | :11mm | Length | :31mm |
| Weight | 0.026 | Diameter | :22mm |
| Packaging | Bulk | Termination | Screws |
| Contact Form | SPST | Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front | Terminal Type | :Screw |
| Contact Finish | Gold | Mounting Style | Panel |
| Operating Force | :12N | Contact Material | GoldPlated |
| Housing Material | Stainless Steel | Material - Blade | CopperAlloy |
| Termination Style | Screw Terminal | Color - Connectors | :Red |
| Illumination Color | :Red | Panel Cutout Shape | :19.2mm |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Red | ||
Product Info
| Type | Vandal Resistant, Illuminated | Series | MPI |
| Features | Stainless Steel | Electrical Life | 35,000 Cycles |
Environmental
| Rated Life | 750000(Min.) | Mechanical Life | 750,000 Cycles |
| NEMA Frame Size | :IP66 | Operational Life | 35000(Min.) |
| Ingress Protection | IP66 - Dust Tight, Water Resistant | Operating Temperature | -30°C ~ 70°C |
| Luminous Flux @ Current/Temperature | :900mcd | ||
Documents & Media
Similar Parts

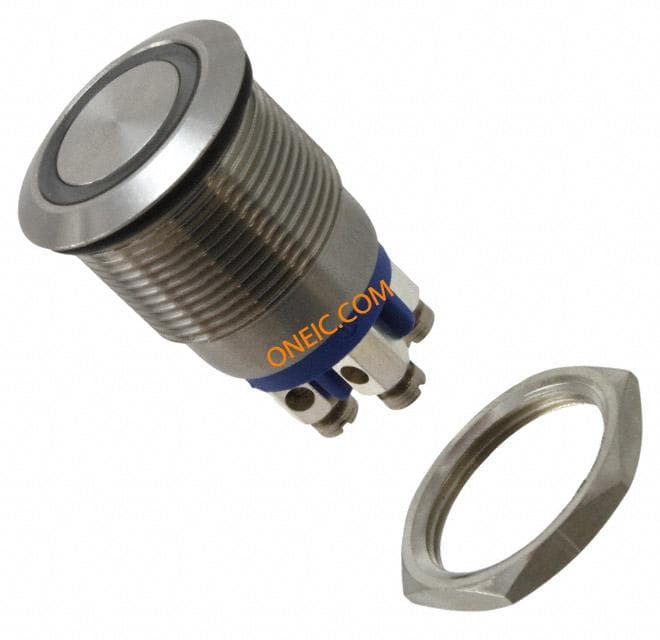

MPI002/TERM/BL
Bulgin
Pushbutton Switches BLU RING SCREW TERM SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring blue,IP66 Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, VANDAL RESISTANT, BLUE, RING Switch,RingIlluminated;Blue;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/BL, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

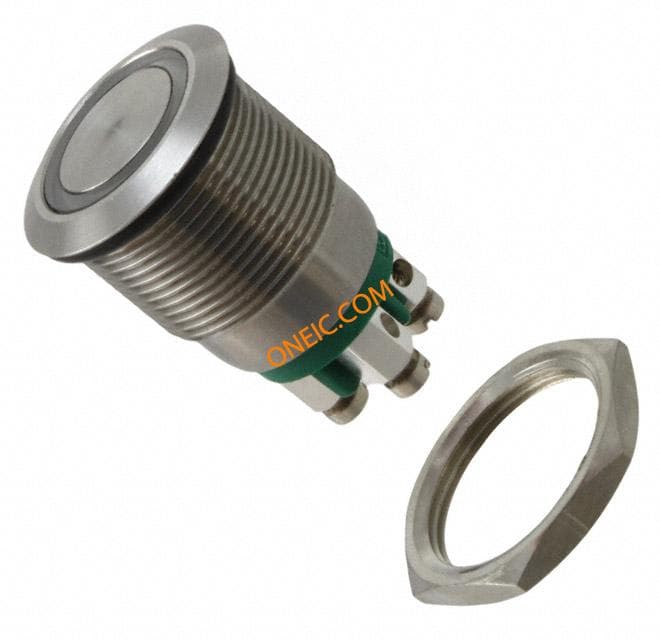

MPI002/TERM/GN
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring green,IP66 Pushbutton Switches GRN RING SCREW TERM Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, SPST, 0.05A, 24VDC, ILL GREEN Switch,RingIlluminated;Green;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/GN, Bulgin Bulgin IP40 银色 SP 瞬间 照明 按钮开关, 50 mA@ 24 V 直流

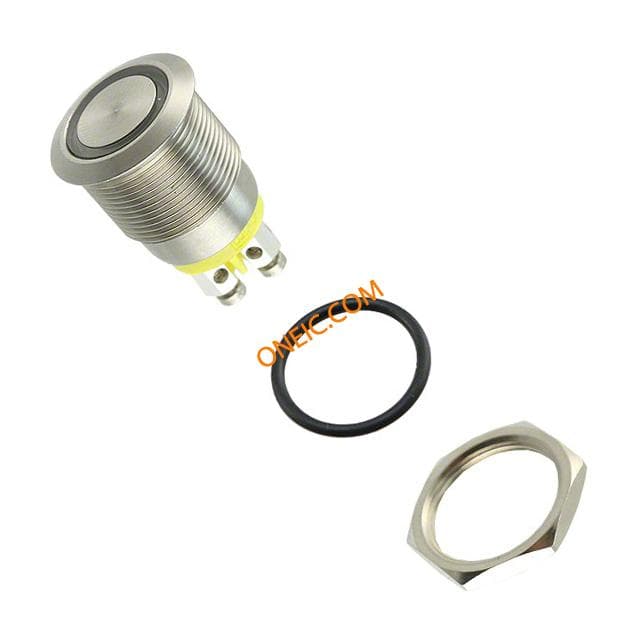

MPI002/TERM/AM
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring amber,IP66 Pushbutton Switches AMBER DOT SCREW TERM SWITCH, ILLUM AMBER Switch,RingIlluminated;Amber;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

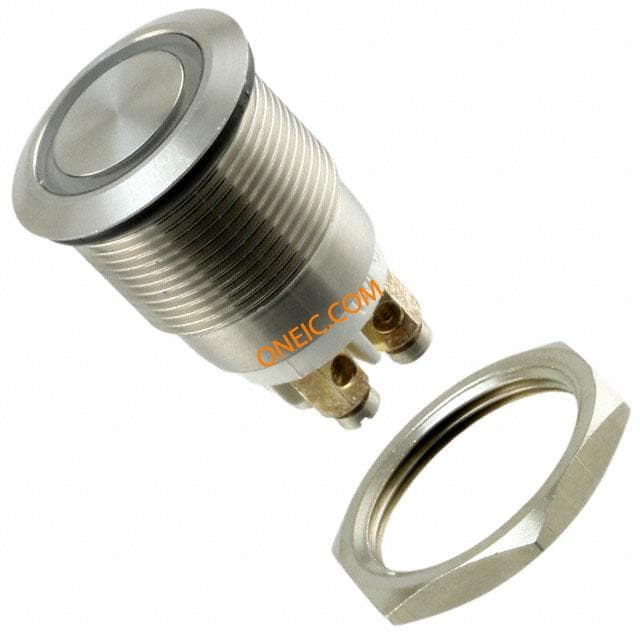

MPI002/TERM/WH
