MPI002/TERM/GN
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring green,IP66 Pushbutton Switches GRN RING SCREW TERM Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, SPST, 0.05A, 24VDC, ILL GREEN Switch,RingIlluminated;Green;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/GN, Bulgin Bulgin IP40 银色 SP 瞬间 照明 按钮开关, 50 mA@ 24 V 直流 |
| Category |
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85365007 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPST-NO | Backlight | green |
| Operation | PushtoMake | Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. |
| Voltage Rating | 24V | Number of Poles | 1 |
| Switch Function | Off-Mom | Switching Voltage | OFF-(ON) |
| Contact Resistance | :100mohm | Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| Current Rating (Max) | 50mA (DC) | Current - Max/Contact | :50mA |
| Insulation Resistance | >1000Megohms | Switch Function/Rating | :Off-(On) |
| Contact Rating (Current) | 0.05 A @ 24 V dc | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :24V | Illumination Voltage (Nominal) | 3.5 VDC |
| DC contacts rating (at resistance load) | 0.5 A / 24 VDC | ||
Mechanical
| Shape | convex | Weight | 0.026 |
| Packaging | Bulk | Body Color | silver |
| Lead Style | screw terminals | Size - Body | Ø25.7 x 31.5mm |
| Termination | Screws | Contact Form | SPST |
| Actuator Type | Round, Button, Flush | Body Material | stainless steel |
| Mounting Type | Panel Mount, Front | Contact Finish | Gold |
| Mounting Style | Panel | Operating Force | :12N |
| Contact Material | GoldPlated | Housing Material | Stainless Steel |
| Material - Blade | CopperAlloy | Package Quantity | 50 |
| Termination Style | Screw Terminal | Color - Connectors | :Green |
| Illumination Color | :Green | Number of Positions | 1-position |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Green | Contact Material - Plating | gold plated |
Product Info
| Spg | 50 | Type | Vandal Resistant, Illuminated |
| Series | MPI | Features | Stainless Steel |
| Switch Type | vandal resistant | Illumination | LED |
| Electrical Life | 35,000 Cycles | Number of Units | 1 |
| Contacts Configuration | SPST-NO | ||
Environmental
| Rated Life | 750000(Min.) | Mechanical Life | 750,000 Cycles |
| Operational Life | 35000(Min.) | Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Operating Temperature | -30°C ~ 70°C | ||
Documents & Media
Similar Parts
MPI002/TERM/BL
Bulgin
Pushbutton Switches BLU RING SCREW TERM SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring blue,IP66 Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, VANDAL RESISTANT, BLUE, RING Switch,RingIlluminated;Blue;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/BL, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

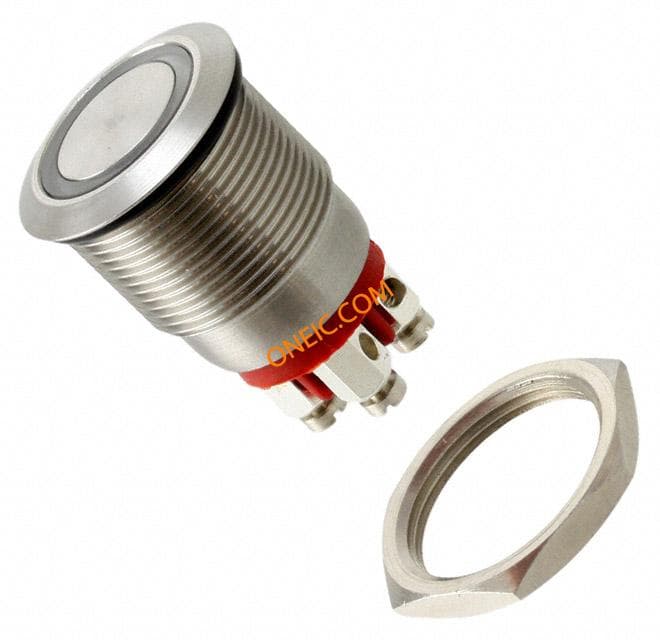

MPI002/TERM/RD
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red,IP66 Pushbutton Switches RED RING SCREW TERM SWITCH, ILLUM RED Switch,RingIlluminated;Red;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/RD, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

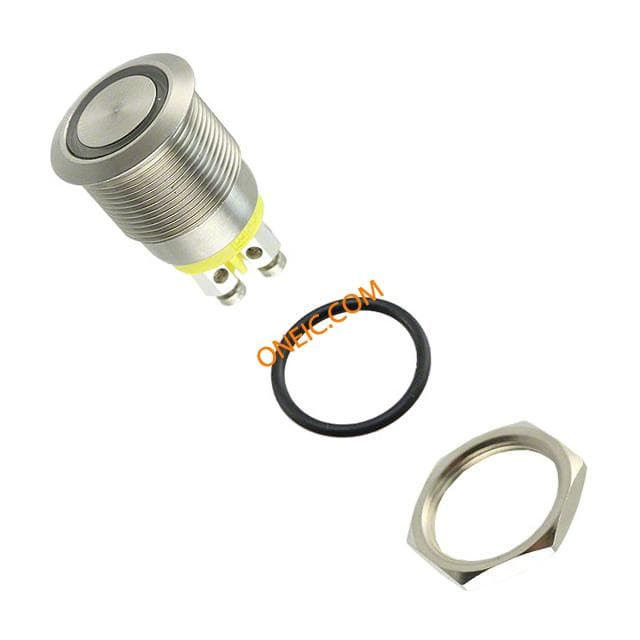

MPI002/TERM/AM
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring amber,IP66 Pushbutton Switches AMBER DOT SCREW TERM SWITCH, ILLUM AMBER Switch,RingIlluminated;Amber;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

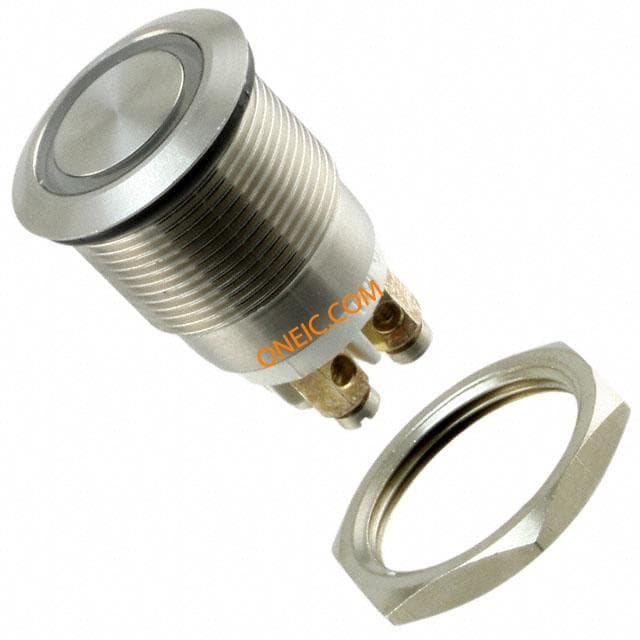

MPI002/TERM/WH
