MPI002/28/GN
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring green,IP66 Pushbutton Switches GRN RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, ILLUM GREEN Switch,RingIlluminated;Green;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs |
| Category |
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85365007 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPST-NO | Operation | PushtoMake |
| Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | Voltage Rating | 24V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Contact Resistance | :100mohm | Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED Forward Voltage | :3V | Current Rating (Max) | 50mA (DC) |
| Current - Max/Contact | :50mA | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | :Off-(On) | Contact Rating (Current) | 0.05 A @ 24 V dc |
| Connector - Voltage Input | :Connector | Voltage - Supply (Vcc/Vdd) | :24V |
| Illumination Voltage (Nominal) | 3.5 VDC | Current - DC Forward (If) (Max) | :20mA |
Mechanical
| Depth | :11mm | Length | :32.7mm |
| Weight | 0.022 | Diameter | :22mm |
| Packaging | Bulk | Termination | SolderLugs |
| Contact Form | SPST | Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front | Terminal Type | :Connector |
| Contact Finish | Gold | Mounting Style | Panel |
| Operating Force | :12N | Contact Material | GoldPlated |
| Housing Material | Stainless Steel | Material - Blade | CopperAlloy |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Color - Connectors | :Green |
| Illumination Color | :Green | Panel Cutout Shape | :19.2mm |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Green | ||
Product Info
| Type | Vandal Resistant, Illuminated | Series | MPI |
| Features | Stainless Steel | Electrical Life | 35,000 Cycles |
Environmental
| Rated Life | 750000(Min.) | Mechanical Life | 750,000 Cycles |
| NEMA Frame Size | :IP66 | Operational Life | 35000(Min.) |
| Ingress Protection | IP66 - Dust Tight, Water Resistant | Operating Temperature | -30°C ~ 70°C |
| Luminous Flux @ Current/Temperature | :1500mcd | ||
Documents & Media
Similar Parts

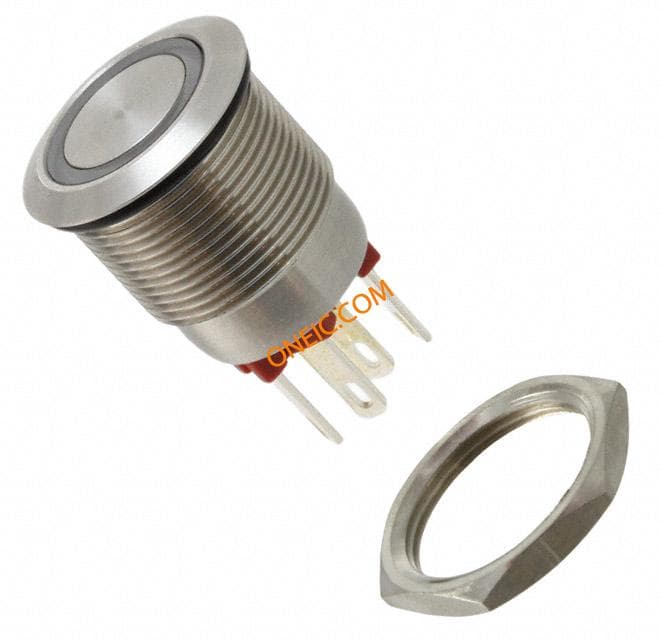

MPI002/28/RD
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red,IP66 Pushbutton Switches RED RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, ILLUM RED Switch,RingIlluminated;Red;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流
MPI002/28/BL
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring blue,IP66 Switch; Illuminated; BLUE; Solder TAG; RING ILLUMINATION Pushbutton Switches BLU RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, VANDAL RESISTANT, BLUE, RING Switch,RingIlluminated;Blue;S.P.PushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

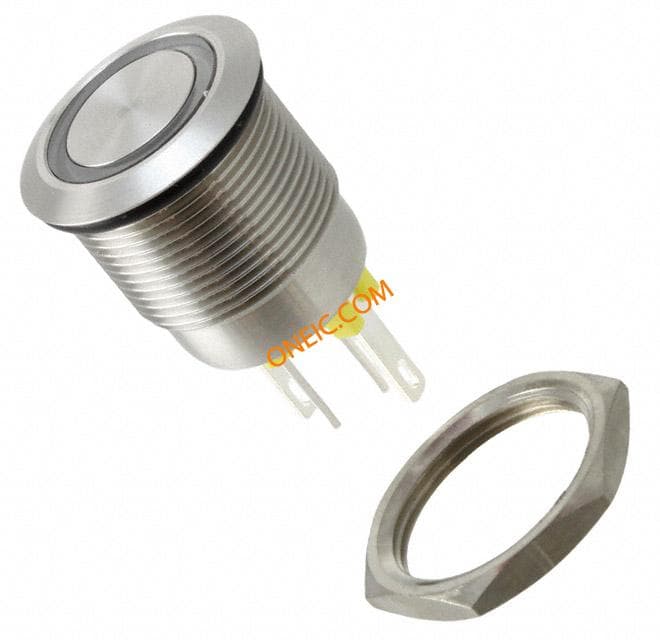

MPI002/28/AM
