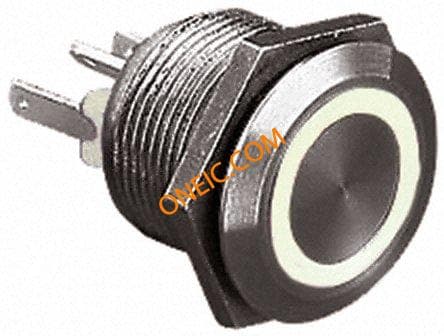

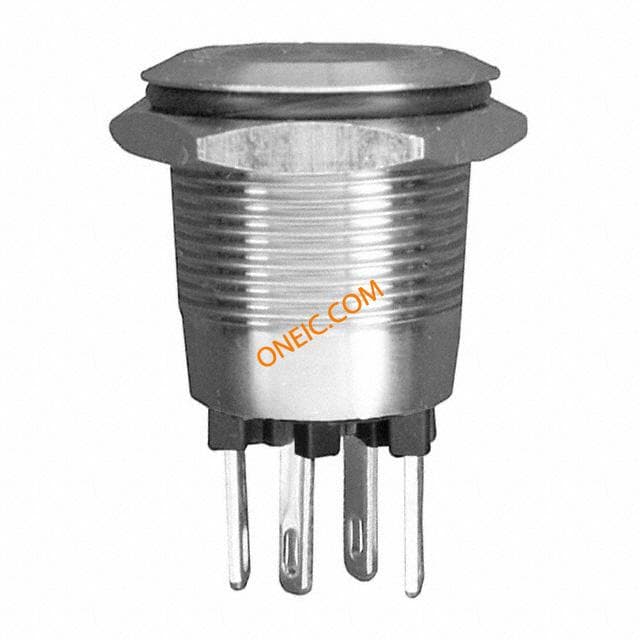

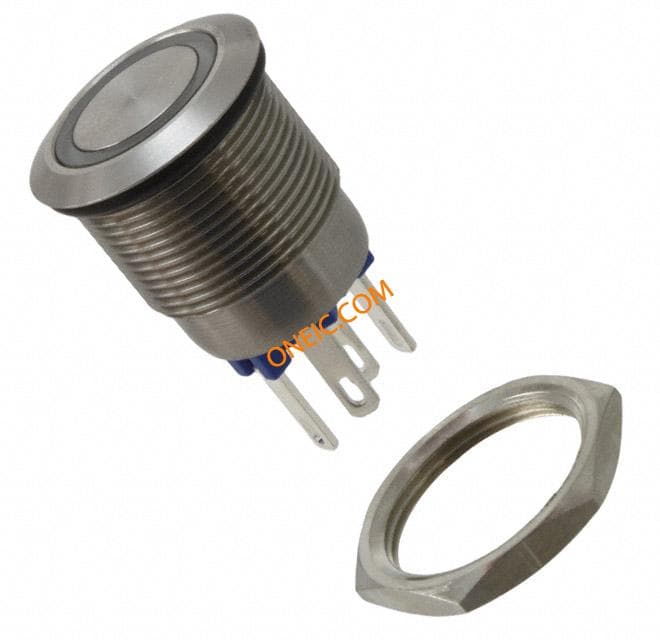

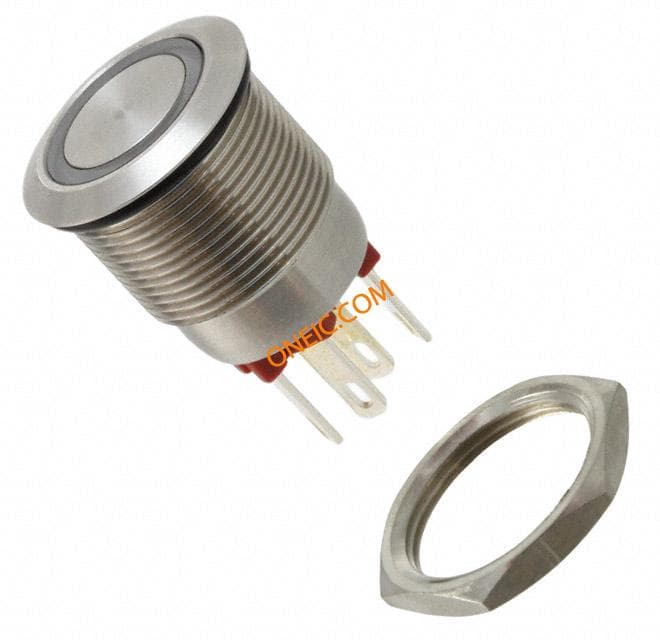

MPI002/28/AM
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPST-NO | Operation | PushtoMake |
| Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | Voltage Rating | 24V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Contact Resistance | :100mohm | Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED Forward Voltage | :2V | Current Rating (Max) | 50mA (DC) |
| Current - Max/Contact | :50mA | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | :Off-(On) | Contact Rating (Current) | 0.05 A @ 24 V dc |
| Connector - Voltage Input | :Connector | Voltage - Supply (Vcc/Vdd) | :24V |
| Illumination Voltage (Nominal) | 2.3 VDC | ||
Mechanical
| Depth | :28.2mm | Length | :32.7mm |
| Weight | 0.02175 | Diameter | :22mm |
| Packaging | Bulk | Termination | SolderLugs |
| Contact Form | SPST | Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front | Terminal Type | :Connector |
| Mounting Style | Panel | Operating Force | :12N |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Color - Connectors | :Amber |
| Illumination Color | :Amber | Panel Cutout Shape | :19.2mm |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Amber | ||
Product Info
| Type | Vandal Resistant, Illuminated | Series | :MPI002 |
| Features | Stainless Steel | Electrical Life | 35,000 Cycles |
Environmental
| Mechanical Life | 750,000 Cycles | NEMA Frame Size | :IP66 |
| Ingress Protection | IP66 - Dust Tight, Water Resistant | Operating Temperature | -30°C ~ 70°C |
| Luminous Flux @ Current/Temperature | :220mcd | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Bulgin_2010_p180-2249.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
