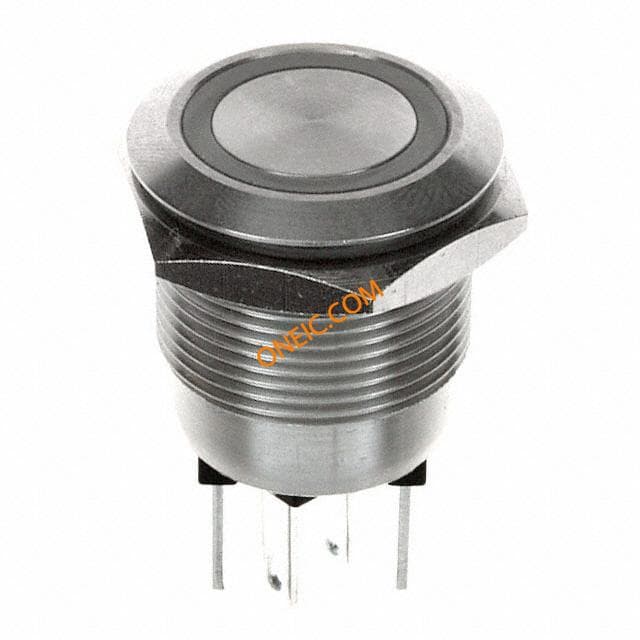

MPI002/28/D5
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365080 |
Electrical
| Contact Resistance | :100mohm | Current - Max/Contact | :50mA |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 50 mA @ 24 V dc | Connector - Voltage Input | :Connector |
| Voltage - Supply (Vcc/Vdd) | :24V | Current - DC Forward (If) (Max) | :20mA |
Mechanical
| Depth | :30.3mm | Length | :31mm |
| Weight | 0.25 | Diameter | :22mm |
| LED Color | Green/Blue | Case Color | Stainless Steel |
| Actuator Type | Button | Mounting Type | Panel Mount |
| Terminal Type | Solder | Actuator Color | Silver |
| Operating Force | :12N | Contact Material | Gold Plated |
| Color - Connectors | :Blue / Green | Illumination Color | :Blue, Green |
| Panel Cutout Shape | 19.2mm | Number of Positions | :35000 |
| Color - Actuator/Cap | :Chrome | Contact Layout, Typical | SP-NO |
| Panel Cutout Dimensions | 19.2mm | ||
Product Info
| Illumination | Yes | ||
Environmental
| Seal Rating | IP66 | NEMA Frame Size | :IP66 |
| Switching Cycles | :750000 | Operating Temperature | +70°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Bulgin_2010_p180-2249.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
