MPI002/28/D1
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red/green,IP66 Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, VR, ILLUM, RED/GREEN Switch,RingIllum.;Red/Green;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85365080 |
Electrical
| Circuit | SPST-NO | Operation | PushtoMake |
| Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | Voltage Rating | 24V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Contact Resistance | :100mohm | Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| Current Rating (Max) | 50mA (DC) | Current - Max/Contact | :50mA |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | :Off-(On) |
| Contact Rating (Current) | 0.05 A @ 24 V dc | Connector - Voltage Input | :Connector |
| Voltage - Supply (Vcc/Vdd) | :24V | Illumination Voltage (Nominal) | 2.05, 3.6 VDC |
| Current - DC Forward (If) (Max) | :20mA | ||
Mechanical
| Depth | :30.3mm | Length | :31mm |
| Weight | 0.25 | Diameter | :22mm |
| Packaging | Bulk | Termination | SolderLugs |
| Actuator Type | Round, Button, Flush | Mounting Type | Panel Mount, Front |
| Terminal Type | :Connector | Mounting Style | Panel |
| Operating Force | :12N | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Color - Connectors | :Red / Green | Illumination Color | :Green, Red |
| Panel Cutout Shape | :19.2mm | Number of Positions | :35000 |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Red/Green | ||
Product Info
| Type | Vandal Resistant, Illuminated | Series | :MPI002 |
| Features | Stainless Steel | Electrical Life | 35,000 Cycles |
Environmental
| Mechanical Life | 750,000 Cycles | NEMA Frame Size | :IP66 |
| Switching Cycles | :750000 | Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Operating Temperature | -30°C ~ 70°C | ||
Similar Parts

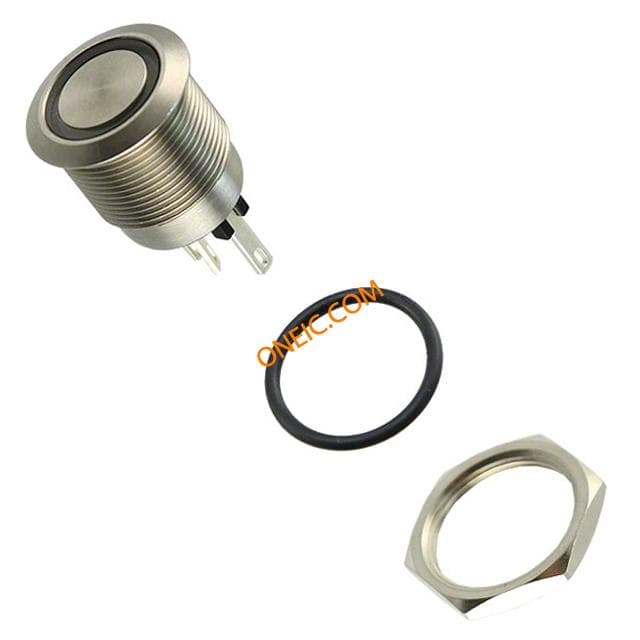

MPI002/28/D4
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red/blue,IP66 Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, VR, ILLUM, RED/BLUE Switch,RingIllum.;Red/Blue;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流
$59.3600
Details

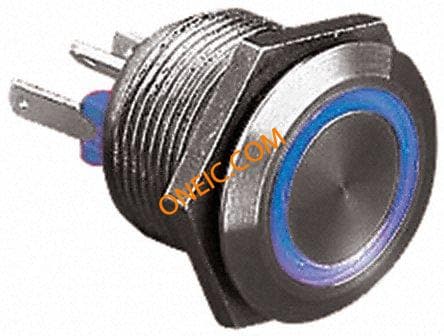

MPI002/28/D5
