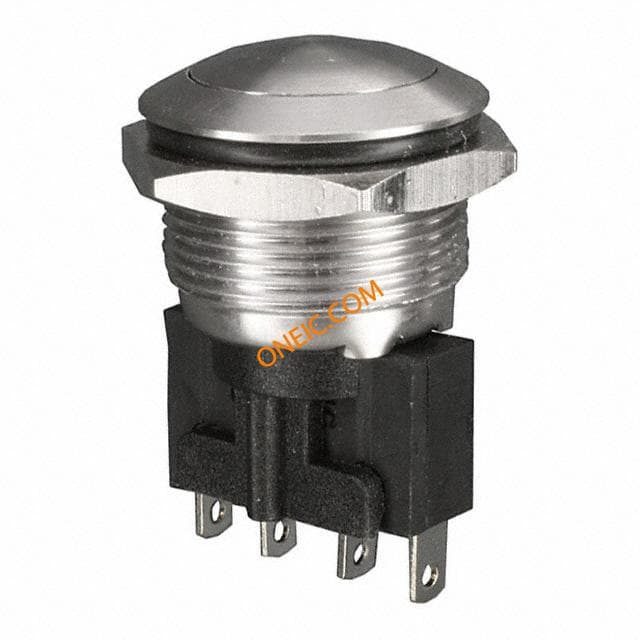

MP0037/3
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 1A 50V Switch,PB,vandal res,22mm,domed,SPNO Pushbutton Switches DOME BTN FRONT MOUNT Switch Push Button SP Round Button 1A 50VAC 50VDC Momentary Contact Screw Panel Mount SWITCH, SPNO, ANTI-VANDAL Switch,Pushbutton,domed;vandalresistant;1Amp,50V;21.5mm Push-button Switch, vandal proof 19.2 mm 50 VAC 1 A 1 make contact (NO), MP0037/3, Bulgin Bulgin IP68 SP 面板安装 瞬间 按钮开关, 1 A @ 50 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Standards | ULListed,CSACertified | Tariff No | 85365007 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 50V |
| Switch Function | Off-Mom | Dielectric Strength | :2.5kV |
| Current Rating (Max) | 1A (AC/DC) | Current - Max/Contact | :1A |
| Insulation Resistance | :10000Mohm | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 1 A @ 50 V ac/dc | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :50V | Voltage - Rated AC (Phase to Ground/Neutral) | :50V |
Mechanical
| Depth | :25.3mm | Length | :28.4mm |
| Weight | 0.028 | Material | :stainless steel/chromium |
| Packaging | Tray | Contact Form | SPST |
| Actuator Type | Round, Button, Domed | Mounting Type | Panel Mount, Front |
| Terminal Type | Screw | Contact Finish | Silver |
| Mounting Style | Panel | Panel Thickness | :4mm |
| Contact Material | Silver Plated Brass | Housing Material | Stainless Steel |
| Material - Blade | Brass,SilverPlated | Termination Style | Screw Terminal |
| Color - Connectors | :Silver | Diameter - Outside | :21.5mm |
| Panel Cutout Shape | :19.2mm | Actuator Style/Size | :- |
| Color - Actuator/Cap | Silver | Contact Layout, Typical | SP |
| Panel Cutout Dimensions | Circular - 19.20mm Dia | ||
Product Info
| Type | Vandal Resistant | Series | MP |
| Electrical Life | 30,000 Cycles | ||
Environmental
| Rated Life | 1000000(Min.) | Seal Rating | Sealed |
| Mechanical Life | 1,000,000 Cycles | NEMA Frame Size | :IP66 |
| Operational Life | 30000(Min.) | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
