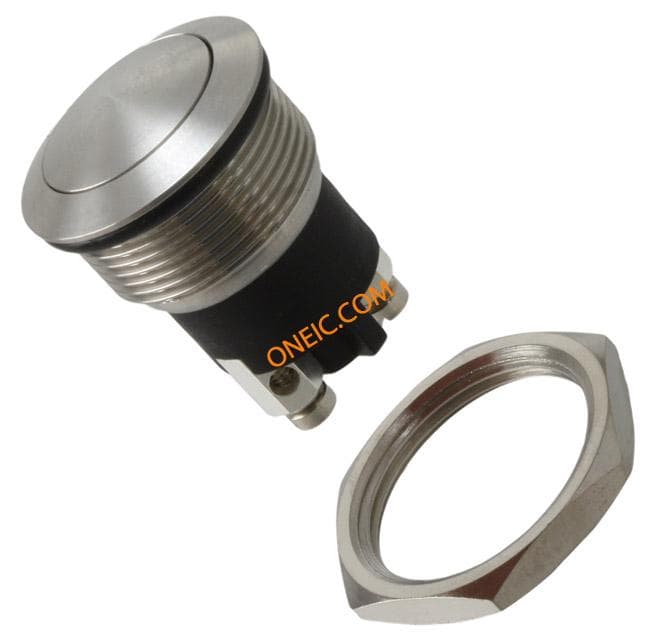

MP0031/3
| Manufacturer | |
| Description | SWITCH PUSHBUTTON SPDT 5A 250V Switch,PB,vandal res,22mm,domed,SPCO Pushbutton Switches DOME BTN FRONT MOUNT Switch Push Button SP Round Button 5A 250VAC 28VDC Momentary Contact Solder Lug Panel Mount SWITCH, SPNO, SPNC, ANTI-VANDAL Switch,Pushbutton,domed;vandalresistant;22mm,SPCO5A250V;21.5mm Push-button Switch, vandal proof 19.2 mm 250 VAC 5 A 1 make contact + 1 break contact, MP0031/3, Bulgin Bulgin IP66 SP 面板安装 瞬间 按钮开关, 5 A @ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Standards | ULListed,CSACertified | Tariff No | 85365007 |
Electrical
| Circuit | SPDT | Operation | Momentary |
| Voltage Rating | 250V | Number of Poles | 1 |
| Switch Function | On-Mom | Dielectric Strength | :2kV |
| Current Rating (Max) | 5A (AC), 2A (DC) | Current - Max/Contact | :5A |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 5 A @ 250 V ac | Contact Rating @ Voltage | :5A |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :28V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | :26mm | Length | :27.6mm |
| Weight | 0.026 | Material | :Silver |
| Packaging | Tray | Body Finish | Micro |
| Termination | SolderLugs | Contact Form | SPST |
| Actuator Type | Round, Button, Domed | Mounting Type | Panel Mount, Front |
| Terminal Type | Solder | Contact Finish | Silver |
| Mounting Style | Through Hole | Panel Thickness | :4mm |
| Contact Material | Fine Silver | Housing Material | Stainless Steel |
| Material - Blade | Brass,TinPlated | Termination Style | Solder Lug |
| Diameter - Outside | :21.5mm | Panel Cutout Shape | :25.8mm |
| Actuator Style/Size | :Dome | Color - Actuator/Cap | Silver |
| Mounting Hole Diameter | 19.2mm | Switch Actuation Level | :Dome |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
Product Info
| Type | Vandal Resistant | Series | MP |
| Features | VandalResistant,DomedProfile | Electrical Life | 35,000 Cycles |
Environmental
| Rated Life | 1000000(Min.) | Seal Rating | Sealed |
| Mechanical Life | 1,000,000 Cycles | NEMA Frame Size | :IP66 |
| Operational Life | 35000(Min.) | Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Operating Temperature | -20°C ~ 70°C | ||
