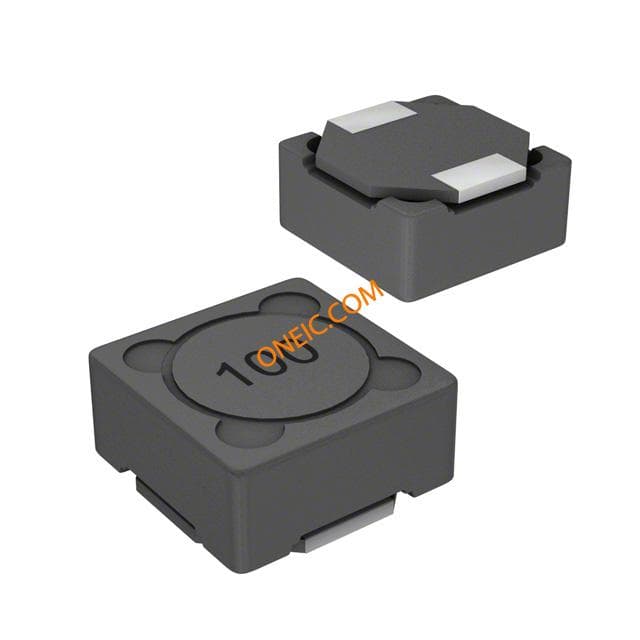

SRR1260-151K
| Manufacturer | |
| Description | Ind Power Shielded Wirewound 150uH 10% 100KHz 20Q-Factor Ferrite 1.55A T/R INDUCTOR POWER 150UH 1.55A SMD Power inductor SMD shielded 150uH 1.55A Fixed Inductors 150uH Inductor Power Shielded Wirewound 150uH 10% 100KHz 20Q-Factor Ferrite 1.55A 260mOhm DCR T/R INDUCTOR, 150UH, POWER, SHIELDED, SMD INDUCTOR, SHIELDED, 150UH, 1.55A, SMD Inductor;Power;Shielded;Wirewound;150uH;10%;1.55A Bourns SRR1260 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 150 μH ±10%, 1.55A Idc Q:20 |
| Category |
Business
| Product | Inductors | Other Names | SRR1260-151KCT |
| Product Category | Fixed Inductors | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Protection Features | Shielded | ||
Electrical
| Q @ Freq | 20(Typ)@796KHz | Core Type | :Shielded |
| Qmax @ Th | 20 | Tolerance | 10 % |
| Inductance | 150 uH | Range deg/s | :BOURNS - SRR1260 Series |
| Test Frequency | 100kHz | Inductance Range | :± 10% |
| Current Rating - DC | :1.55A | DC Resistance (DCR) | 260 mOhm Max |
| Current Rating (Max) | 1.55 A | DC Resistance (DCR) (Max) | :0.26ohm |
| Frequency - Self Resonant | 5MHz | Current - Saturation (Isat) | :1.55A |
| Current Saturation - Series | 1.55A | Resistance - Initial (Ri) (Min) | 260 mOhm |
| Current - On State (It (RMS)) (Max) | :1.55A | ||
Mechanical
| Depth | 12.5mm | Width | 12.5 mm |
| Height | 6.5 mm | Length | 12.5mm |
| Weight | 0.00336 | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Termination | SMT | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 12.8 X 12.8 X 6.5 | Material - Core | Ferrite |
| Length - Overall | 12.8 | Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :12.5mm x 12.5mm x 6mm |
| Height - Seated (Max) | 0.256" (6.50mm) | ||
Product Info
| Type | Power | Series | SRR1260 |
| Technology | Wirewound | Manufacturer | SRRSeries |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | +125°C |
