SRP1235-R68M
| Manufacturer | |
| Description | Ind Power Shielded Wirewound 680nH 20% 100KHz Iron 28A T/R Inductor Power Shielded Wirewound 680nH 20% 100KHz Iron 28A 2.5mOhm DCR T/R INDUCTOR POWER 0.68UH 28A SMD Power Inductor SMD 0.68uH 28A Fixed Inductors .68uH 40amp INDUCTOR, SMD, 0.68UH, 40A PowerInductorSMD0.68uH28A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Shielded Power Inductors | Other Names | SRP1235-R68MCT |
| Product Category | Fixed Inductors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Protection Features | Shielded | ||
Electrical
| Core Type | :Shielded | Tolerance | 20 % |
| Inductance | 680 nH | Range deg/s | :BOURNS - SRP1235 Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 2.5 mOhm Max | Current Rating (Max) | 28 A |
| DC Resistance (DCR) (Max) | :2500µohm | Frequency - Self Resonant | 72MHz |
| Current - Saturation (Isat) | :40A | Current Saturation - Series | 40A |
| Resistance - Initial (Ri) (Min) | 2.5 mOhm | Current - On State (It (RMS)) (Max) | :28A |
Mechanical
| Depth | 13.5 mm | Width | 13.9 mm |
| Height | 3.7 mm | Length | 12.7mm |
| Weight | 0.002 | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | Iron | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 13.9 X 13.5 X 3.7 |
| Material - Core | Iron | Length - Overall | 13.9 |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :13.9mm x 13.5mm x 3.7mm | Height - Seated (Max) | 0.146" (3.70mm) |
Product Info
| Type | Power | Series | :SRP1235 |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | -55°C ~ 150°C | ||
Documents & Media
Similar Parts
SRP1235-R68M
bourns
Ind Power Shielded Wirewound 680nH 20% 100KHz Iron 28A T/R Inductor Power Shielded Wirewound 680nH 20% 100KHz Iron 28A 2.5mOhm DCR T/R INDUCTOR POWER 0.68UH 28A SMD Power Inductor SMD 0.68uH 28A Fixed Inductors .68uH 40amp INDUCTOR, SMD, 0.68UH, 40A PowerInductorSMD0.68uH28A
$3.9780
Details
MHBEAD-LAB1
Bourns
EMI Kits MAGNETICS CHIP BEAD KIT MAGNETICS CHIP BEAD KIT KIT FERR CHIP BEAD MH SERIES FERRITE KIT
$281.1900
Details
SRP-LAB2
Bourns

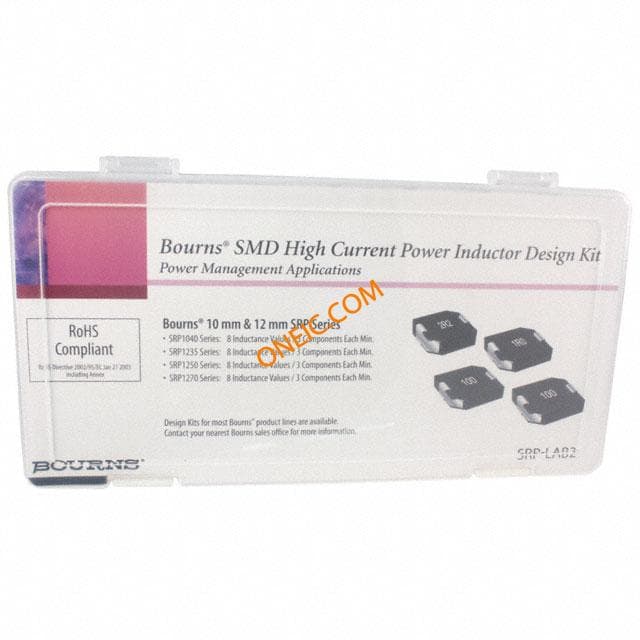

Inductor Kits & Accessories SMD POWER INDUCTOR INDUCTOR POWER DESIGN KIT SMD Bourns Surface Mount Power Inductor Sample Kit, 96 Pieces Bourns 96件 电感器设计套件, 套件包含轴向引线电感器、片式磁珠、片式磁珠阵列、片式电感器、功率电感器、径向带线电感器
