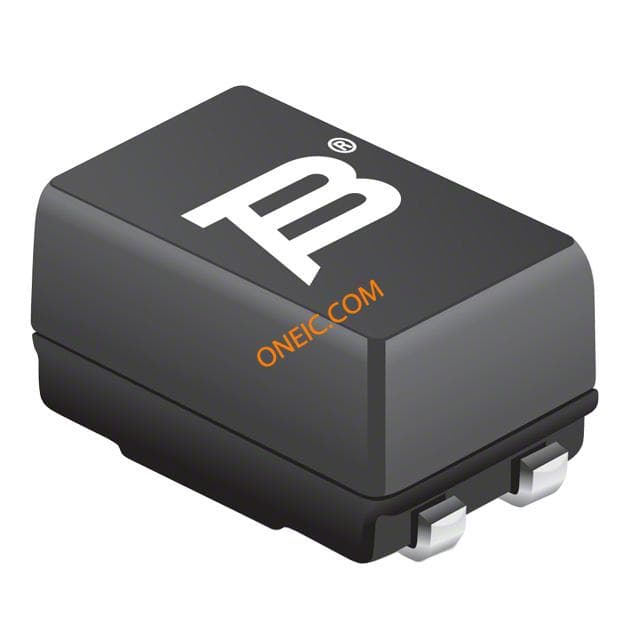

SRF0905-500Y
| Manufacturer | |
| Description | Electromechanical Filter 1500Ohm 50uH 0.8A Common Mode Chokes Dual 50uH 1.5kOhm 1kHz 800mA SMD T/R INDUCTOR COMMON MODE 50UH 0.8A Common mode choke SMD 0905 50uH Common Mode Filters / Chokes 22uH 0.8A 1500ohms 20-100MHz Common Mode Chokes Dual 50uH 1.5kOhm 1kHz 800mA 320mOhm DCR SMD T/R COMMON MODE CHOKE, 50UH, 800mA, 30% Inductor, SMD 50 uH 0.8 A ±30%, SRF0905-500Y, Bourns Bourns SRF0905 系列 铁氧体芯材 绕线贴片电感器, 50 μH ±30%, 800mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Data Line EMI/RFI Filters | Other Names | SRF0905-500YCT |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85045020 | Rad Hardened | No |
Electrical
| Current | 800mA | Impedance | 1500 Ohm |
| Tolerance | ± 30% | Inductance | 22u(Max) |
| Filter Type | Power or Data Line | Range deg/s | :BOURNS - SRF0905 Series |
| Test Frequency | 1 kHz | Voltage Rating | 50VDC |
| DC Resistance (DCR) | 320 mOhm Max | Voltage - Breakdown | 500VAC |
| Current Rating (Max) | 0.8A | Frequency - Self Resonant | 100MHz |
| Current - DC Forward (If) (Max) | 800 mA | Resistance - Initial (Ri) (Min) | 0.32Ω |
Mechanical
| Depth | 6mm | Width | 6 mm |
| Height | 5mm | Length | 9.2mm |
| Weight | 0 | Packaging | Tape and Reel |
| Height (Max) | 0.209" (5.30mm) | Core Material | Ferrite |
| Mounting Type | Surface Mount | Package / Case | Horizontal, 4 PC Pad |
| Length - Overall | 9.5 mm | Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) |
| Material - Magnet | Yes | Termination Style | SMD/SMT |
| Shell Size - Insert | :0905 | Dimensions - Overall | :9.2mm x 6mm x 5mm |
Product Info
| Type | Signal Line | Series | SRF0905 |
| Configuration | Dual | Number of Lines | 2 |
Environmental
| Operating Temperature | -40 to 105 °C | ||
