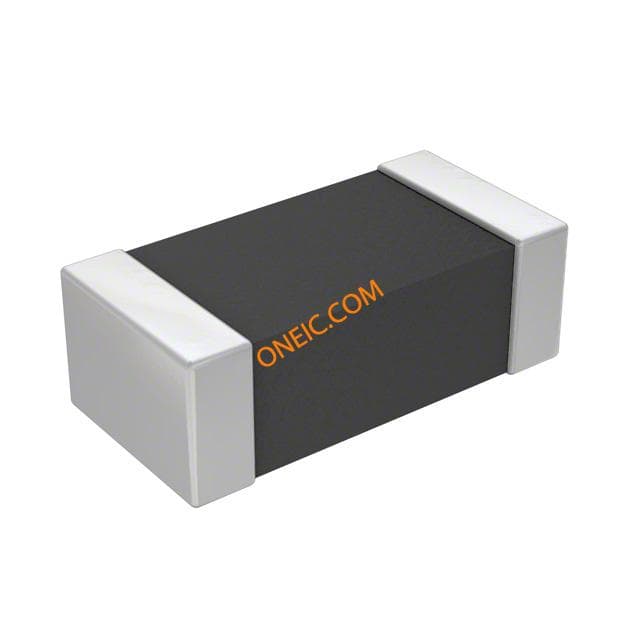

MH2029-070Y
| Manufacturer | |
| Description | Ind High Current Chip Bead 7Ohm 25% 100MHz Ferrite 3A 0805 T/R BEAD FERRITE 7 OHM 3A EMI Filter Beads, Chips & Arrays Impedance 7ohms IDC 3.0 FERRITE BEAD, 7OHM, 25%, 3A, 0805, FULL REEL FERRITE BEAD, 7OHM, 25%, 3A, 0805 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads | Other Names | MH2029-070YCT |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85049011 |
Electrical
| Impedance | 7 Ohm | Tolerance | 25 % |
| Filter Type | Differential Mode - Single | Test Frequency | 100 MHz |
| Current Rating - DC | :3A | DC Resistance (DCR) | 30 mOhm Max |
| Current Rating (Max) | 3 A | Impedance @ Frequency | 7 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.03ohm | Resistance - Initial (Ri) (Min) | 30 mOhm |
Mechanical
| Depth | 1.4 mm | Width | 1.2 mm |
| Height | 1.1 mm | Weight | 0 |
| Packaging | Tape & Reel (TR) | Height (Max) | 0.043" (1.10mm) |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Package / Case | 0805 | Mounting Feature | :SMD |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Termination Style | SMD/SMT |
Product Info
| Type | High Current Chip Bead | Series | :MH |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
