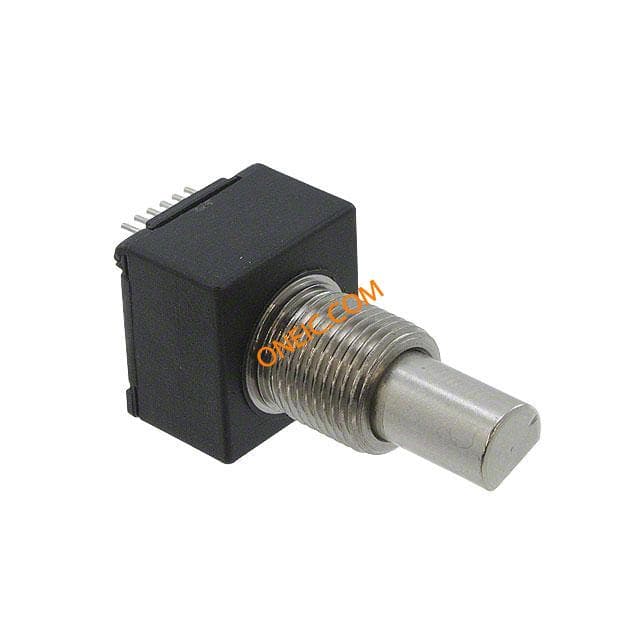

EM14A1D-C24-L008S
| Manufacturer | |
| Description | ROTARY OPTICAL ENCODER-14MM,AXIAL,8PPR,PUSH SWITCH,HAZMAT Optical Encoder Rotary Incremental Flat 1.5oz.in Straight Digital Square Wave Through Hole PC Pins 8PPR ENCODER OPT ROTARY 8PPR W/SW Bourns Incremental Quadrature Rotary Encoder, 120rpm, 8ppr, 5V dc, IP54 Encoders 14MM Axial ENCODER, INCREMENTAL, 2CH, 120RPM QRATE Bourns 2 位 增量编码器 , 8 ppr, 偏平轴, 5 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Optical Encoders | Other Names | EM14A1DC24L008S |
| Product Category | Encoders | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364900 |
Electrical
| Speed | 120r/min | Output | Quadrature |
| Resolution | 2 bit | Output Type | Quadrature (Incremental) |
| Output Signal | Quadrature | Voltage Rating | 4.75V |
| Frequency - Max | :120rpm | Current - Output | :25mA |
| Current - Supply | :26mA | Voltage - Supply | 5VDC |
| Resolution (Bits) | :8 | Number of Channels | 2 |
| Current Rating (Max) | :25mA | Voltage - Supply (Min) | 5.25V |
Mechanical
| Depth | 14.25 | Height | 29.08 |
| Weight | 0.05 | Material | Metal |
| Packaging | Tube | Orientation | Vertical |
| Shaft Detail | Flat | Actuator Type | 1/4" Dia Flatted End |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Shaft Diameter | 6.35 | Actuation Force | Rotary |
| Depth - Overall | 32.05mm | Width - Overall | 14.25mm |
| Height - Overall | 14.76mm | Length - Overall | 14.76 |
| Termination Style | PC Pin | Depth Behind Panel | :10.03mm |
| Number of Positions | 32 | Rotational Life (Cycles Min) | 200K |
| Torque - Max Momentary (oz-in / mNm) | 1.5oz.in | ||
Product Info
| Detent | Yes | Series | EM14 |
| Location | Shaft | Technology | Incremental |
| Index Stops | Not Indexed | Encoder Type | Digital Square Wave |
| Programmable | No | Built in Switch | Yes |
| Module/Board Type | No | Other Specifications | Yes |
| Pulses per Revolution | 8 | ||
Environmental
| Seal Rating | IP54 | Mechanical Life | 100000 |
| Shock Resistance | 50G | Operating Temperature | +70°C |
