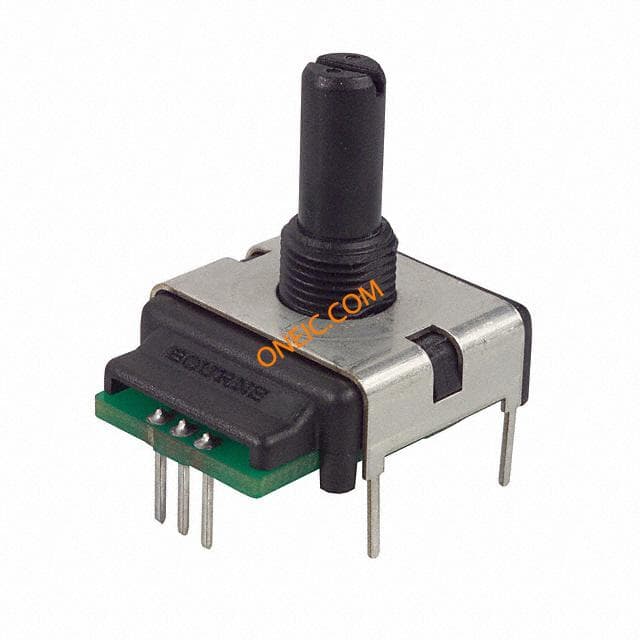

ECW1D-B24-BC0024L
| Manufacturer | |
| Description | DIGITAL CONTACTING ENCODER,HAZMAT Mechanical Encoder Rotary Incremental Plain with Slot 2.25oz.in Straight Quadrature Digital Square Wave 96PPR Bracket Mount PC Pins ENCODER DIGITAL CONT 24 CPR Bourns Incremental Quadrature Rotary Encoder, 120rpm, 24ppr, IP40 Encoders 9mm Inserted Slot ENCODER, ROTARY, DIGITAL, 120RPM INCREMENTAL ENCODER ENCODER,DIGITALCONTACTING,200KREVOLUTIONS,0.875INSHAFTLENGTH Bourns 2 位 增量编码器 , 24 ppr, 开槽轴 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mechanical Encoders | Product Category | Encoders |
| Standard Package | 45 | Factory Pack Quantity | 45 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
Electrical
| Speed | 120r/min | Output | Quadrature |
| Resolution | 2 bit | Output Type | Quadrature (Incremental) |
| Output Signal | Quadrature | Voltage Rating | 10VDC |
| Resolution (Bits) | :24 | Number of Channels | 2 |
Mechanical
| Height | 33.02 | Weight | 0.00595 |
| Packaging | Bulk | Orientation | Vertical |
| Shaft Detail | Plain with Slot | Actuator Type | 1/4" Dia Slotted End |
| Mounting Type | Bracket Mount | Terminal Type | PC Pins |
| Bushing Thread | M9 x 0.75 | Shaft Diameter | 1/4 in |
| Actuation Force | Rotary | Depth - Overall | 23.37mm |
| Material Finish | :- | Width - Overall | 28.49mm |
| Height - Overall | 27.51mm | Length - Overall | 23.37 |
| Size / Dimension | 28.5 mm x 22 mm | Termination Style | PC Pin |
| Number of Positions | 24 | Bushing, Grommet Type | 9 mm x 1/4 in. |
| Material - Insulation | Plastic | Length - Shaft and Bearing | 3/4 in |
| Rotational Life (Cycles Min) | 200K | Torque - Max Momentary (oz-in / mNm) | 2.25oz.in |
Product Info
| Type | Contacting Encoder | Detent | Yes |
| Series | ECW | Technology | Incremental |
| Index Stops | Not Indexed | Encoder Type | Quadrature |
| Programmable | No | Built in Switch | No |
| Module/Board Type | No | Other Specifications | No Switch |
| Pulses per Revolution | 96 | Leaded Process Compatible | :Yes |
Environmental
| Seal Rating | IP40 | Mechanical Life | 200000 |
| Shock Resistance | 50G | Operating Temperature | +85°C |
