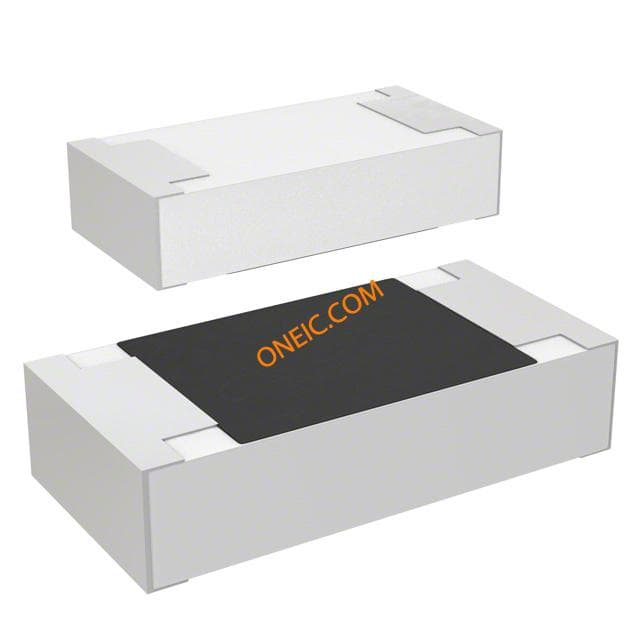

CR1206-JW-104GLF
| Manufacturer | |
| Description | Res Thick Film 1206 100K Ohm 5% 1/4W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel Res Thick Film 1206 100K Ohm 5% 0.25W(1/4W) ±200ppm/°C Molded SMD Paper Tape on Plastic Reel RES 100K OHM 1/4W 5% 1206 SMD SMD 1206 thick film resistor 100K 5% Thick Film Resistors 100KOHM 1/4WATT 5% Res Thick Film 1206 100K Ohm 5% 1/4W ±200ppm/°C SMD Paper Tape on Plastic Reel RESISTOR, 1206, 100K, 5%, 1/4W RESISTOR, THICK FILM, 100KOHM, 250mW, 5% Resistor;ThickFilm;Res100Kilohms;Pwr-Rtg0.25W;Tol5%;SMT;1206 |
| Category |
Business
| Product | Thick Film Resistors SMD | Other Names | CR1206-JW-104GLFCT |
| Product Category | Thick Film Resistors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 10000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85331000 |
Electrical
| Tolerance | 5 % | Fail Short | No |
| Resistance | 100 KOhm | Range deg/s | :BOURNS - CR Series |
| Power (Watts) | 0.25W, 1/4W | Power - Rated | 1/4 W |
| Voltage Rating | 200 V | Current - Sensing | No |
| Resistance (Ohms) | 100k | Resistance Tolerance | :± 5% |
| Resistor - Base (R1) | :Thick Film | ||
Mechanical
| Depth | 1.6mm | Width | 1.6 mm |
| Height | 0.030" (0.75mm) | Length | 3.2mm |
| Weight | 0.0001 | Base Type | :1206 [3216 Metric] |
| Packaging | Paper Tape on Plastic Reel | Termination | SMT |
| Mounting Type | Surface Mount | Contact Finish | Tin |
| Number of Pins | :2 | Package / Case | 1206 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.2 |
| Material - Blade | ThickFilm | Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Termination Style | Solder Pad | Resistive Material | :Thick Film |
| Mounting Hole Diameter | 3216 | Number of Terminations | 2 |
| Supplier Device Package | 1206 | ||
Product Info
| Type | Thick Film | Series | CR1206 |
| Technology | Thick Film | Composition | Thick Film |
Environmental
| Surge Rating (Watts) | No | Operating Temperature | -55 to 155 °C |
| Temperature Coefficient | ±200 ppm/°C | Temperature Coefficient (Typ) | -200ppm/°C |
Documents & Media
