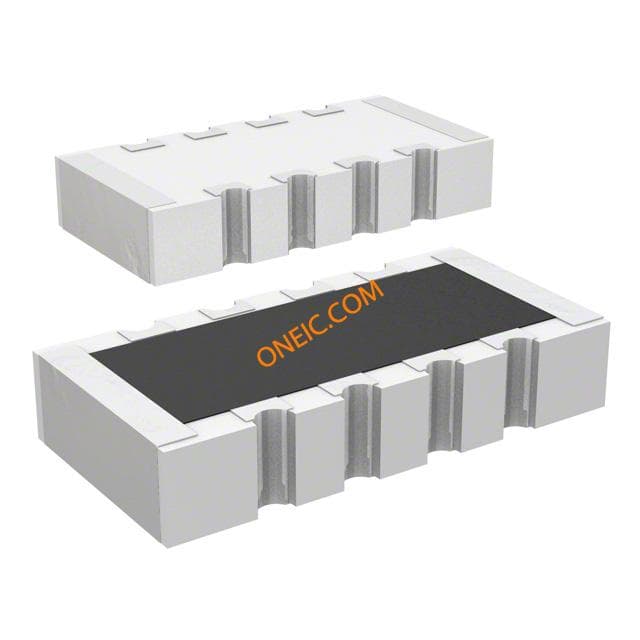

CAY16-1002F4LF
| Manufacturer | |
| Description | Res Thick Film Array 10K Ohm 1% ISOL Molded 8-Pin 1206 Convex SMD Paper T/R Res Thick Film Array 10K Ohm 1% ISOL Molded 8-Pin 1206(4 X 0603) Convex SMD Paper T/R RES ARRAY 10K OHM 4 RES 1206 Resistor Arrays 10K 1% Convex 4 resist. Resistor Networks & Arrays 10K 1% Convex 4resistors RESISTOR N/W, 4RES, 10K, 1%, SMD, FULL REEL RESISTOR N/W, 4RES, 10K, 1%, SMD Resistor;ThickFilm;Networks&Arrays;10KOhm;1%;8Pin Resistor network SMD 10 kOhm ± 1 %, CAY16-1002F4LF, Bourns Bourns CAY16 系列 10kΩ ±1% 4电阻 贴片排阻, ISOL, 额定0.25W, 1206 封装 |
| Category |
Business
| Other Names | CAY16-1002F4LFCT | Product Category | Resistor Networks & Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85332100 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Circuit | IsolatedArray | Tolerance | 1% |
| Resistance | 10 KOhm | Power - Max | 0.062W |
| Element Type | :Isolated | Power - Rated | 0.25W |
| Voltage Rating | :50V | Circuit Pattern | ISOL |
| Resistor Values | 10 kOhms | Power Per Element | 62.5mW |
| Resistance (Ohms) | 10k | Number of Elements | :4 |
| Power - Peak Pulse | 1/16 W | Number of Resistors | 4 |
| Resistance Tolerance | :± 1% | ||
Mechanical
| Depth | 1.6mm | Width | 0.126 mm |
| Height | 0.024" (0.60mm) | Length | 3.2mm |
| Weight | 0 | Base Type | :1206 ^3216 Metric] |
| Packaging | Paper Tape and Reel | Pitch - Post | 0.8 mm |
| Mounting Type | Surface Mount | Mounting Style | Surface Mount |
| Number of Pins | 8 | Package / Case | Molded |
| Package Cooled | SMD | Material Finish | :- |
| Length - Overall | 3.2 mm | Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Termination Style | Convex | Number of Contacts | 8 |
| Resistive Material | :Thick Film | Number of Positions | 8 |
| Supplier Device Package | 1206 | ||
Product Info
| Type | Array | Series | CAT/CAY 16 |
| DELETED | Compliant | Technology | Thick Film |
| Circuit Type | Isolated | Failure Rate | Not Required |
| Manufacturer | CAY16Series | Product Type | Arrays |
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±200ppm/°C |
