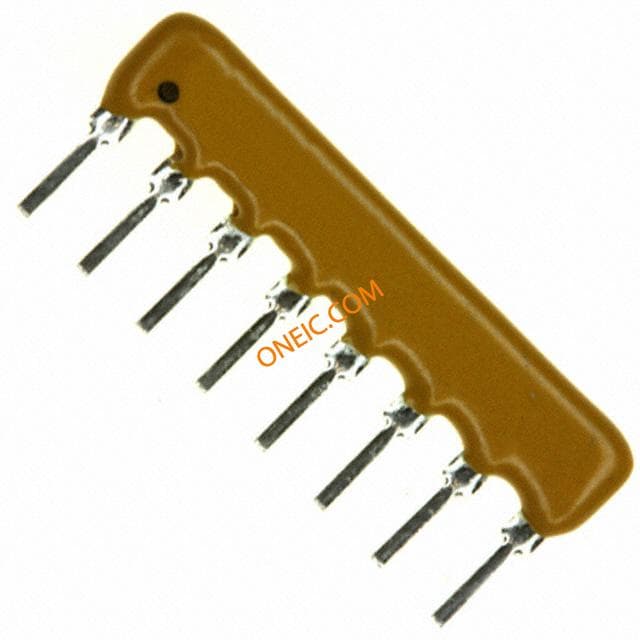

4608X-101-103LF
| Manufacturer | |
| Description | Res Thick Film NET 10K Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 7 RES 8SIP 7-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 8pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 1W �100ppm/C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor,Ntwrk;10000Ohms;Bussed;EpoxyResin;ConformalSIP;1W;2%;100V;8Pin Resistor network: X; 10kΩ; No.of resistors:7; THT; 200mW; ±2%; 100V Resistor network SIL 10 kOhm ± 2 %, 4608X-101-103LF, Bourns Bourns 10kΩ ±2% 7个电阻 排阻, 总线, 1W, SIP 封装 4600X |
| Category |
Business
| Product Category | Resistor Networks & Arrays | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85332100 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Circuit | BussedNetwork | Tolerance | 2% |
| Resistance | 10 KOhm | Power - Max | 0.2W |
| Power - Rated | 1 W | Resistor Type | one pin of each resistor connected to common terminal |
| Voltage Rating | 100 V | Circuit Pattern | BUS |
| Resistor Values | 10 kOhms | Voltage - Rated | 100V |
| Power Per Element | 200mW | Resistance (Ohms) | 10k |
| Number of Elements | :7 | Power - Peak Pulse | 1/5 W |
| Number of Resistors | 7 | Resistance Tolerance | :± 2% |
| Resistor - Base (R1) | :Radial Leaded | Insulation Resistance | :10Mohm |
Mechanical
| Depth | 2.49mm | Width | :2.49mm |
| Height | 0.200" (5.08mm) | Length | 20.27mm |
| Weight | 0.032 | Base Type | :SIP |
| Packaging | Bulk | Lead Spacing | :2.54mm |
| Pitch - Post | 2.54 mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 8 |
| Package / Case | Conformal | Package Cooled | SIP |
| Length - Overall | 20.27 mm | Package Quantity | 100 |
| Size / Dimension | 0.798" L x 0.098" W (20.27mm x 2.49mm) | Pitch - Connector | 2.54mm |
| Termination Style | Pin | Length - Lead Wire | :3.43mm |
| Number of Contacts | 8 | Resistive Material | :Thick Film Array |
| Number of Positions | 8 | Supplier Device Package | 8-SIP |
Product Info
| Spg | 100 | Type | Network |
| Series | 4600X | Technology | Thick Film |
| Circuit Type | Bussed | Failure Rate | Not Required |
| Manufacturer | 4600XSeries | Product Type | Networks |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100 ppm/°C |
| Temperature Coefficient (Typ) | :50ppm/°C | ||
