3361P-1-104GLF
| Manufacturer | |
| Description | Res Cermet Trimmer 100K Ohm 10% 1/2W 1(Elec)/1(Mech)Turn 2.77mm (6.71 X 8.53 X 5.21mm) Gull Wing SMD Embossed T/R Trimmer Resistors - SMD 1/4 SQ 100K 10% 0.5WATTS Res Cermet Trimmer 100K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 2.77mm (6.71 X 8.53 X 5.21mm) Gull Wing SMD Embossed T/R TRIMMER 100K OHM 0.5W SMD Res Cermet Trimmer 100K Ohm 10% 1/2W 1Turn 2.77mm Gull Wing SMD Embossed T/R TRIMMER, POT, 100K, 10%, 1TURN, SMD Track Resistance:100kohm Trimmer;Cermet;Rest100Kilohms;SMD;1Turn;Pwr-Rtg0.5W Potentiometer: mounting; single turn, horizontal; 100kΩ; 500mW |
| Category |
Business
| Product | Trimmers | Other Names | 3361P-104GLFDKR |
| Product Category | Trimmer Resistors - SMD | Standard Package | Tape & Reel |
| Factory Pack Quantity | 750 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
Electrical
| Tolerance | 10 % | Resistance | 100 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.5W, 1/2W | Power - Rated | 1/2 W |
| Voltage Rating | 300 V | Resistance (Ohms) | 100k |
| Dielectric Strength | :900V | Resistance Tolerance | :± 10% |
| Insulation Resistance | 1000Megohms | DC Resistance (DCR) (Max) | :100kohm |
Mechanical
| Depth | :7.04mm | Taper | Linear |
| Width | :6.71mm | Height | 5.21 |
| Length | :5.21mm | Torque | 3Oz./in. |
| Weight | 0.0005 | Packaging | Reel |
| Termination | SolderablePins | Mounting Type | Surface Mount |
| Mounting Style | SMD | Rotation Angle | 270° |
| Shaft Diameter | 2.77 mm | Length - Overall | 6.71 |
| Material - Blade | Cermet | Package Quantity | 750 |
| Size / Dimension | 5.21 mm W x 6.71 mm L | Pitch - Connector | 6.4x5.08mm |
| Termination Style | SMD/SMT | Conductor Material | cermet |
| Resistive Material | Cermet | ||
Product Info
| Spg | 750 | Type | Trimmer |
| Series | 3361 | Direction | clockwise |
| Technology | Cermet | Product Type | Single Turn |
| Adjustment Type | Top Crossed | Characteristics | linear |
| Number of Turns | 1(Elec)|1(Mech) Turns | Number of Units | 1 |
| Type Attributes | 1/4" | Other Specifications | 240° |
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | 100 PPM / C | Operating Temperature - Junction | +125°C |
Documents & Media
Similar Parts
H-91
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-91 Potentiometer Tools & Hardware TRIMMER ADJUST TOOL Pocket Clip TrimmerTool,Adjustment;Tweeker;BldThk0.018in;BldW0.09in Tool: for potentiometers adjustment; Application:3214,3224 Adjusting tool, H-91, Bourns Bourns 微调电阻器
3361P-1-104GLF
bourns
Res Cermet Trimmer 100K Ohm 10% 1/2W 1(Elec)/1(Mech)Turn 2.77mm (6.71 X 8.53 X 5.21mm) Gull Wing SMD Embossed T/R Trimmer Resistors - SMD 1/4 SQ 100K 10% 0.5WATTS Res Cermet Trimmer 100K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 2.77mm (6.71 X 8.53 X 5.21mm) Gull Wing SMD Embossed T/R TRIMMER 100K OHM 0.5W SMD Res Cermet Trimmer 100K Ohm 10% 1/2W 1Turn 2.77mm Gull Wing SMD Embossed T/R TRIMMER, POT, 100K, 10%, 1TURN, SMD Track Resistance:100kohm Trimmer;Cermet;Rest100Kilohms;SMD;1Turn;Pwr-Rtg0.5W Potentiometer: mounting; single turn, horizontal; 100kΩ; 500mW

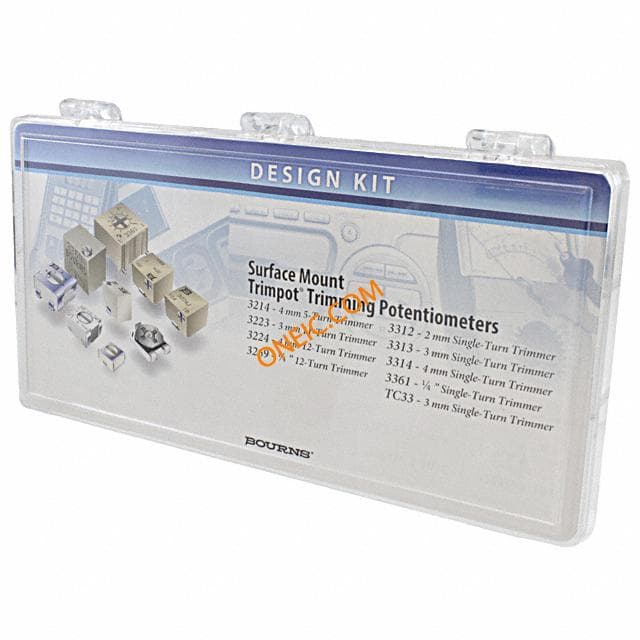

H-815
