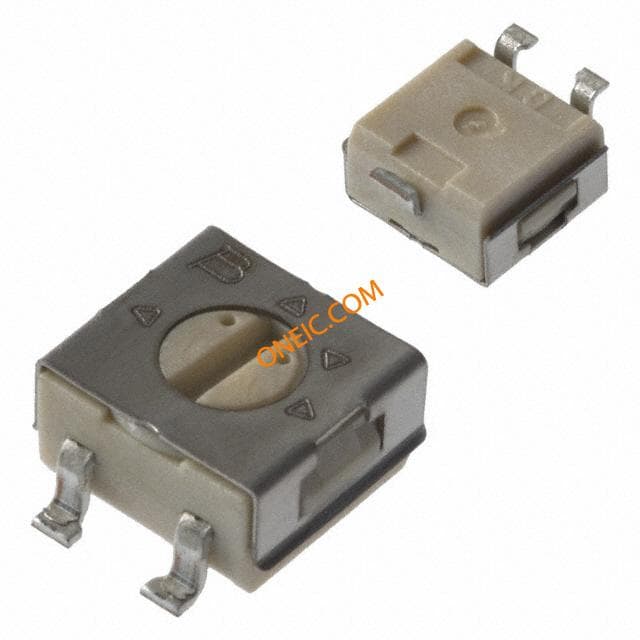

3314G-1-103E
| Manufacturer | |
| Description | Res Cermet Trimmer 10K Ohm 20% 1/4W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R Res Cermet Trimmer 10K Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMER 10K OHM 0.25W SMD 3314G SMT top adj cermet trimmer,10K 4mm Trimmer Resistors - SMD 4mm SQ 10K Res Cermet Trimmer 10K Ohm 20% 0.25W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMING POTENTIOMETER, 10K Trimmer;Cermet;Rest10Kilohms;SMD;1Turn;Pwr-Rtg0.25W Potentiometer: mounting; single turn, horizontal; 10kΩ; 250mW; SMD Trimmer Cermet SMD 10 kOhm 250 mW, 3314G-1-103E, Bourns Bourns 3314G 系列 表面贴装 微调电阻器, 带 鸥翼型接端, 10kΩ ±20%, 0.25W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Other Names | 3314G-103EDKR |
| Product Category | Trimmer Resistors - SMD | Standard Package | Tape & Reel |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Tolerance | 20 % | Resistance | 10 KOhm |
| Element Type | Cermet | Power (Watts) | 0.25W, 1/4W |
| Power - Rated | 1/4 W | Voltage Rating | :300V |
| Resistance (Ohms) | 10k | Contact Resistance | :0.03% |
| Resistance Tolerance | 10kΩ | DC Resistance (DCR) (Max) | :10kohm |
Mechanical
| Depth | 6.2mm | Taper | Linear |
| Width | :4.5mm | Height | 2.55mm |
| Length | 5mm | Weight | 0.000014 |
| Diameter | Not Required mm | Base Type | :SMD |
| Packaging | Embossed Tape and Reel | Size - Body | 4.5 x 4.5 x 2.55mm |
| Mounting Type | Surface Mount | Reel Capacity | :500 |
| Terminal Type | :Surface Mount (SMD, SMT) | Mounting Style | Surface Mount |
| Rotation Angle | :210° | Shaft Diameter | 2.45 mm |
| Length - Overall | 5 mm | Package Quantity | 500 |
| Size / Dimension | Square - 0.177" L x 0.177" W x 0.100" H (4.50mm x 4.50mm x 2.55mm) | Tape Width - Max | :12mm |
| Pitch - Connector | 2.3x5mm | Termination Style | Gull Wing |
| Conductor Material | cermet | Resistive Material | Cermet |
Product Info
| Spg | 500 | Type | Trimmer |
| Series | 3314 | DELETED | Compliant |
| Technology | Cermet | Failure Rate | Not Required |
| Product Type | Single Turn | Adjustment Type | Top Adjustment |
| Characteristics | linear | Number of Turns | 1(Elec)|1(Mech) Turns |
| Number of Units | 1 | Type Attributes | mounting |
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100ppm/°C |
| Temperature Coefficient (Typ) | :100ppm/°C | ||
Documents & Media
