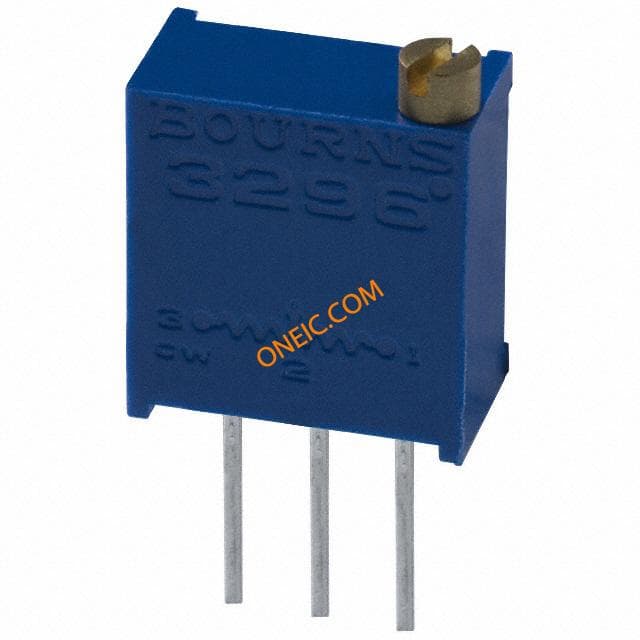

3296W-1-203LF
| Manufacturer | |
| Description | Res Cermet Trimmer 20K Ohm 10% 1/2W 25(Elec)Turn 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube Res Cermet Trimmer 20K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube TRIMMER 20K OHM 0.5W PC PIN 3296W top adj cermet trimmer,20K 10mm Trimmer Resistors - Through Hole 3/8 20Kohms Sealed Vertical Adjust TRIMMER, 20K, 25 TURN, T HOLE Trimmer;Cermet;Rest20Kilohms;PCB;25Turns;Pwr-Rtg0.5W Potentiometer: mounting; multiturn; 20kΩ; 500mW; THT; ±10%; linear Trimmer Cermet 20 kOhm linear 500 mW, 3296W-1-203LF, Bourns Bourns 3296W 系列 25 转 通孔 微调电阻器, 带 针接端, 20kΩ ±10%, 1/2W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Tolerance | 10 % | Resistance | 20 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.5W, 1/2W | Power - Rated | 1/2 W |
| Voltage Rating | :300V | Voltage - Rated | 300V |
| Resistance (Ohms) | 20k | Contact Resistance | :1% |
| Dielectric Strength | 900VAC | Resistance Tolerance | 20kΩ |
| Insulation Resistance | 1000Megohms | DC Resistance (DCR) (Max) | :20kohm |
Mechanical
| Depth | 4.83mm | Taper | Linear |
| Height | 11.55mm | Length | 9.53mm |
| Torque | 3Oz./in. | Weight | 0.00086 |
| Diameter | Not Required mm | Packaging | Tube |
| Size - Body | 10 x 9.5 x 4.8mm | Termination | SolderablePins |
| Pin Diameter | :0.5mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Shaft Diameter | 2.19 mm |
| Length - Overall | 9.53 mm | Material - Blade | Cermet |
| Package Quantity | 50 | Size / Dimension | Square - 0.375" L x 0.190" W x 0.395" H (9.53mm x 4.83mm x 10.03mm) |
| Pitch - Connector | 2.54mm | Termination Style | Pin |
| Conductor Material | cermet | Resistive Material | Cermet |
Product Info
| Spg | 50 | Type | Trimmer |
| Series | 3296W | DELETED | Compliant |
| Technology | Cermet | Failure Rate | Not Required |
| Product Type | Multi-Turn | Adjustment Type | Top Adjustment |
| Characteristics | linear | Number of Turns | 25(Elec) Turns |
| Number of Units | 1 | Type Attributes | 3/8" |
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | Operating Temperature - Junction | +150°C |
Documents & Media
