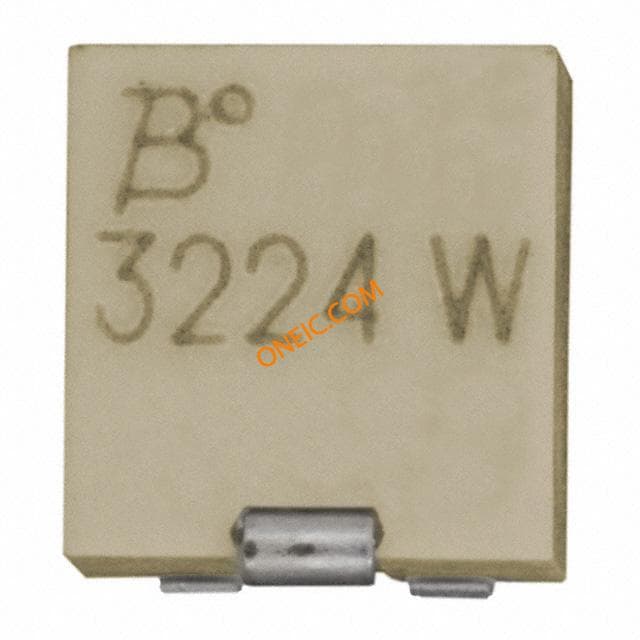

3224W-1-103E
| Manufacturer | |
| Description | Res Cermet Trimmer 10K Ohm 10% 1/4W 12(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R TRIMMER 10K OHM 0.25W SMD 3224W SMT top adj cermet trimmer,10K 4mm Trimmer Resistors - SMD 4mm 10Kohms 10% Square Cermet Sealed Res Cermet Trimmer 10K Ohm 10% 0.25W(1/4W) 12(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R POT, TRIMMER, 10K, 11 TURN, SMD TRIMMER, 0.25W, 10K Trimmer;Cermet;Rest10Kilohms;SMD;11Turn;Pwr-Rtg0.25W Potentiometer: mounting; multiturn; 10kΩ; 250mW; SMD; ±10%; linear Trimmer Cermet SMD 10 kOhm 250 mW, 3224W-1-103E, Bourns Bourns 3224W 系列 12 转 表面贴装 微调电阻器, 带 J 形钩接端, 10kΩ ±10%, 0.25W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Other Names | 3224W-103EDKR |
| Product Category | Trimmer Resistors - SMD | Standard Package | Cut Tape |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | RoHSCompliant | Tariff No | 85334010 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Tolerance | 10 % | Resistance | 10 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.25W, 1/4W | Power - Rated | 1/4 W |
| Voltage Rating | 300 V | Resistance (Ohms) | 10k |
| Contact Resistance | :3% | Dielectric Strength | 600VAC |
| Voltage - Breakdown | :600V | Resistance Tolerance | 10kΩ |
| Insulation Resistance | 100Megohms(Min.) | DC Resistance (DCR) (Max) | :10kohm |
Mechanical
| Depth | 3.9mm | Taper | Linear |
| Width | :4.8mm | Height | 5.3mm |
| Length | 4.8mm | Torque | 180g-cm |
| Weight | 0.00029 | Diameter | Not Required mm |
| Base Type | :SMD | Packaging | Tape & Reel (TR) |
| Size - Body | 4.8 x 4.6 x 3.7mm | Termination | SMT |
| Mounting Type | Surface Mount | Reel Capacity | :250 |
| Terminal Type | :Surface Mount (SMD, SMT) | Mounting Style | Surface Mount |
| Shaft Diameter | 1.5 mm | Length - Overall | 4.8 mm |
| Material - Blade | Cermet | Package Quantity | 500 |
| Size / Dimension | Square - 0.190" L x 0.139" W x 0.200" H (4.80mm x 3.50mm x 5.10mm) | Tape Width - Max | :16mm |
| Termination Style | J Lead | Conductor Material | cermet |
| Resistive Material | Cermet | ||
Product Info
| Spg | 500 | Type | Trimmer |
| Series | 3224 | DELETED | Compliant |
| Technology | Cermet | Failure Rate | Not Required |
| Product Type | Multiturn | Adjustment Type | Top Adjustment |
| Characteristics | linear | Electrical Life | 1000hrs.@85°C,0.25W |
| Number of Turns | 12(Elec) Turns | Number of Units | 1 |
| Type Attributes | mounting | ||
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -65 to 150 °C |
| Temperature Coefficient | ±100ppm/°C | Temperature Coefficient (Typ) | :100ppm/°C |
| Operating Temperature - Junction | +150°C | ||
