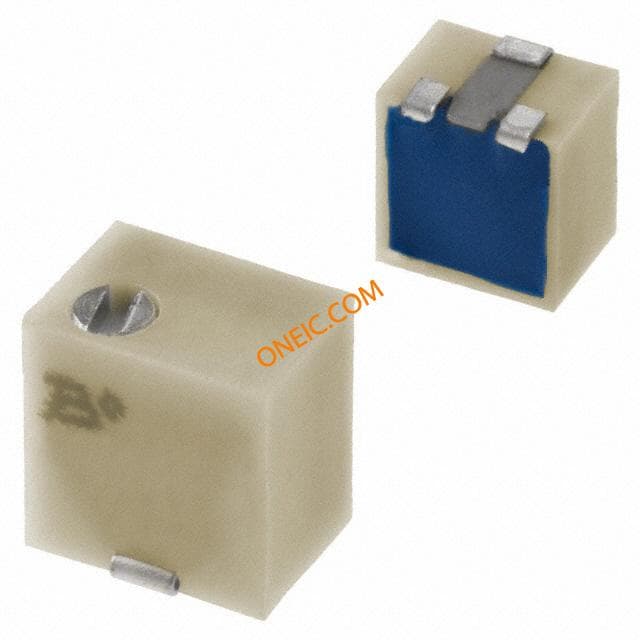

3214W-1-102E
| Manufacturer | |
| Description | Res Cermet Trimmer 1K Ohm 10% 1/4W 5(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R TRIMMER 1K OHM 0.25W SMD 3214W top adj SMT cermet trimmer,1K 4mm Trimmer Resistors - SMD 4mm SQ 1K OHM Res Cermet Trimmer 1K Ohm 10% 0.25W(1/4W) 5(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R TRIMMER, POT, 1KOHM, 10%, 5TURN, SMD, FULL REEL TRIMMER, SMD, 5 TURN 1K Trimmer;Cermet;Rest1Kilohms;SMD;Pwr-Rtg0.25W;Dim0.19inLx0.2inWx0.139inH Potentiometer: mounting; vertical, multiturn; 1kΩ; 250mW; SMD; ±10% Trimmer Cermet SMD 1 kOhm 0.25 W, 3214W-1-102E, Bourns Bourns 3214W 系列 5 转 表面贴装 微调电阻器, 带 J 形钩接端, 1kΩ ±10%, 1/4W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Other Names | 3214W-102EDKR |
| Product Category | Trimmer Resistors - SMD | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85334010 | ||
Electrical
| Tolerance | 10 % | Resistance | 1 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.25W, 1/4W | Power - Rated | 1/4 W |
| Voltage Rating | 300 V | Resistance (Ohms) | 1k |
| Contact Resistance | :3% | Dielectric Strength | 600VAC |
| Voltage - Breakdown | :600V | Resistance Tolerance | 1000Ω |
| Insulation Resistance | 500VDC@100megaohms(Min) | DC Resistance (DCR) (Max) | :1kohm |
Mechanical
| Depth | 3.9mm | Taper | Linear |
| Width | :4.8mm | Height | 5.3mm |
| Length | 4.8mm | Torque | 180g-cm |
| Weight | 0 | Base Type | :SMD |
| Packaging | Tape & Reel (TR) | Size - Body | 4.8 x 4.6 x 3.7mm |
| Termination | SMT | Mounting Type | Surface Mount |
| Reel Capacity | :250 | Terminal Type | :Surface Mount (SMD, SMT) |
| Mounting Style | SMD | Rotation Angle | Wiperidles |
| Shaft Diameter | 1.5 mm | Material - Blade | Cermet |
| Package Quantity | 500 | Size / Dimension | Square - 0.190" L x 0.139" W x 0.200" H (4.80mm x 3.50mm x 5.10mm) |
| Tape Width - Max | :16mm | Termination Style | J Lead |
| Conductor Material | cermet | Resistive Material | Cermet |
Product Info
| Spg | 500 | Type | Trimmer |
| Series | 3214 | Technology | Cermet |
| Product Type | Multiturn | Adjustment Type | Top Adjustment |
| Characteristics | linear | Electrical Life | 1000hr@0.5W,+85°C |
| Number of Turns | 5(Elec) Turns | Number of Units | 1 |
| Type Attributes | mounting | ||
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -65 to 150 °C |
| Temperature Coefficient | ±100ppm/°C | Temperature Coefficient (Typ) | :100ppm/°C |
| Operating Temperature - Junction | +150°C | ||
