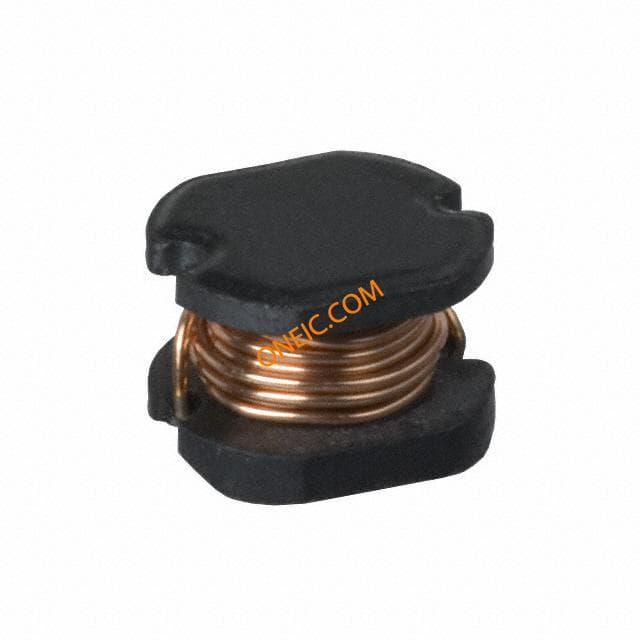

PM43-220M-RC
| Manufacturer | |
| Description | Ind Power Bobbin Core 22uH 20% 1KHz 25Q-Factor Ferrite 760mA T/R INDUCTOR POWER 22UH 20% SMD Fixed Inductors 22uH 20% Inductor Power Bobbin Core 22uH 20% 1KHz 25Q-Factor Ferrite 760mA 380mOhm DCR T/R INDUCTOR, UN-SHIELDED, 22UH, 1.2A, SMD INDUCTOR, 22UH, 760MA, 20%, 20MHz Inductor,Pwr;22uH;SMT;20%;0.68Adc;2.52MHz(Test),24MHz(SRF);0.378OhmsDCR |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | M8506CT | Product Category | Fixed Inductors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85045020 |
Electrical
| Q @ Freq | 25@2.52MHz | Core Type | :Unshielded |
| Tolerance | 20 % | Inductance | 22 uH |
| Range deg/s | :BOURNS - PM43 Series | Test Frequency | 1kHz |
| Inductance Range | :± 20% | Current Rating - DC | :760mA |
| DC Resistance (DCR) | 380 mOhm Max | Current Rating (Max) | 760 mA |
| DC Resistance (DCR) (Max) | :0.38ohm | Frequency - Self Resonant | 20MHz |
| Current Saturation - Series | 1.2A | Resistance - Initial (Ri) (Min) | 380 mOhm |
| Current - On State (It (RMS)) (Max) | :760mA | ||
Mechanical
| Depth | 4.3 mm | Width | 4 mm |
| Height | 3.5 mm | Weight | 0.002 |
| Packaging | Tape & Reel (TR) | Shielding | Unshielded |
| Body Material | :Ferrite | Core Material | Ferrite |
| Mounting Type | Surface Mount | Package / Case | 4.8 X 4.3 X 3.5 |
| Material - Core | Ferrite | Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.138" (3.50mm) |
Product Info
| Type | Power | Series | PM43 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
