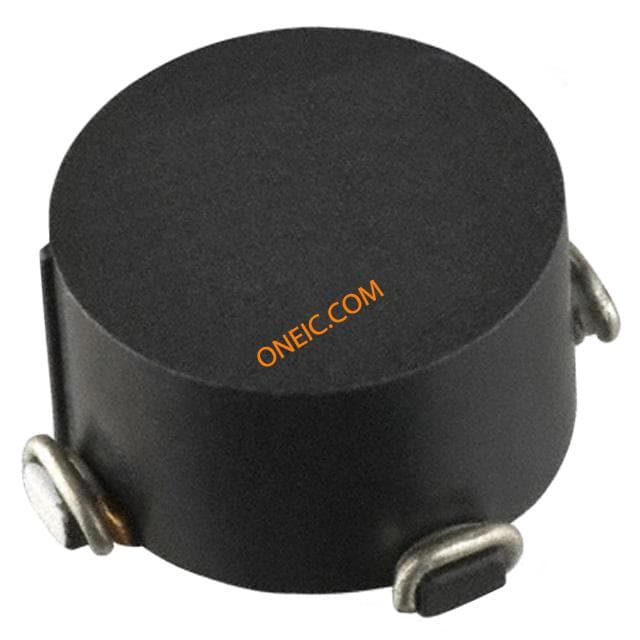

PM3700-30-RC
| Manufacturer | |
| Description | Ind Common Mode Choke 750uH 5.5A T/R Common Mode Chokes Dual 750uH 1kHz 5.5A 12mOhm DCR SMD T/R CHOKE COMMON MODE .75MH SMD Common mode choke SMD 5.5A Common Mode Filters / Chokes 0.75mH MIN CHOKE, COM MODE, 0.75MH, 5.5A Choke;CommonMode;0.75mH@1Khz;0.012DCRMax Bourns PM3700 系列 铁氧体芯材 SMD 共模扼流圈, 750 μH, 5.5A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Other Names | M8938CT |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Current | 5.5A | Inductance | 750 uH |
| Filter Type | Power Line | Range deg/s | :BOURNS - PM3700 Series |
| Test Frequency | 1k | Current Rating - DC | :5.5A |
| DC Resistance (DCR) | 12 mOhm Max | Voltage - Breakdown | 500Vrms |
| Current Rating (Max) | 5.5 A | DC Resistance (DCR) (Max) | :0.012ohm |
| Resistance - Initial (Ri) (Min) | 12 mOhm | ||
Mechanical
| Depth | 21.9 | Height | 11.43 mm |
| Weight | 0.0001 | Diameter | 17.78mm |
| Packaging | Tape and Reel | Shielding | Unshielded |
| Height (Max) | 0.450" (11.43mm) | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :4 |
| Package / Case | 21.9 X 21.9 X 11.43 | Length - Overall | 21.9 |
| Size / Dimension | 0.850" L x 0.850" W (21.60mm x 21.60mm) | Material - Magnet | Yes |
| Termination Style | SMD/SMT | Dimensions - Overall | :17.78mm x 11.43mm |
Product Info
| Type | Common Mode Choke | Configuration | Dual |
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
