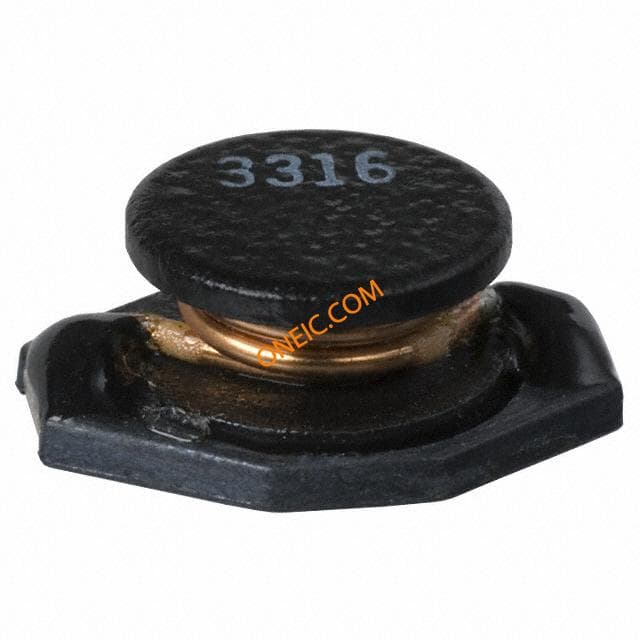

PM3316-220M-RC

Manufacturer	Bourns, Inc.
Description	Ind Power Wirewound 22uH 20% 1KHz 40Q-Factor Ferrite 2A T/R Inductor Power Wirewound 22uH 20% 1KHz 40Q-Factor Ferrite 2A 100mOhm DCR T/R INDUCTOR POWER 22UH 2A SMD Inductor;SMTPwr;22uH;20%;0.10DCR
Category	Inductor ComponentsFixed InductorsFixed Inductors

对参数有疑问？问 AI 助手

Business

Other Names

M8565CT

Standard Package

Tape & Reel

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Rad Hardened	No	Military Standard	Not Required

Electrical

Q @ Freq	40@3MHz	Impedance	Not Required ohm
Tolerance	20 %	Inductance	22 uH
Test Frequency	1kHz	DC Resistance (DCR)	100 mOhm
Current Rating (Max)	2 A	Frequency - Self Resonant	18MHz
Current Saturation - Series	2.5A	Current - DC Forward (If) (Max)	2000 mA
Resistance - Initial (Ri) (Min)	100 mOhm

Mechanical

Depth	10.2 mm	Height	5.3 mm
Diameter	Not Required mm	Packaging	Tape and Reel
Shielding	Unshielded	Core Material	Ferrite
Mounting Type	Surface Mount	Package / Case	12.9 X 10.2 X 5.3
Material - Core	Ferrite	Length - Overall	12.9 mm
Size / Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)	Height - Seated (Max)	0.209" (5.30mm)

Product Info

Type	Power	Technology	Wirewound
Failure Rate	Not Required

Environmental

Operating Temperature

-55°C ~ 125°C
