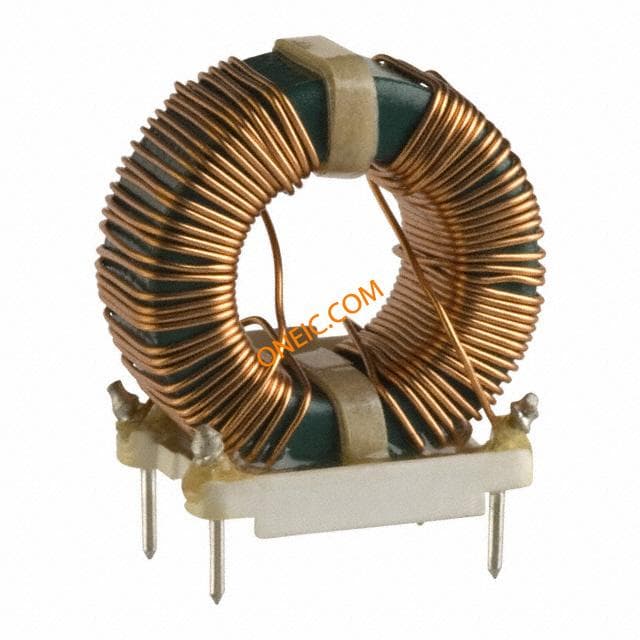

8111-RC
| Manufacturer | |
| Description | Ind Common Mode Toroid 12mH 1KHz 4A Pin Common Mode Chokes Dual 12mH 1kHz 4A 110mOhm DCR Thru-Hole CHOKE COMM MODE W/HDR 12mH 4A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 4A | Inductance | 12 mH |
| Filter Type | Power Line | Test Frequency | 1k |
| DC Resistance (DCR) | 110 mOhm Max | Voltage - Breakdown | 1.5kVrms |
| Current Rating (Max) | 4 A | Resistance - Initial (Ri) (Min) | 110 mOhm |
Mechanical
| Depth | 20.57 mm | Height | 36.83 mm |
| Packaging | Bulk | Lead Style | Pin |
| Height (Max) | 1.450" (36.83mm) | Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin | Length - Overall | 34.29 mm |
| Size / Dimension | 1.350" L x 0.800" W (34.29mm x 20.32mm) | ||
Product Info
| Type | Common Mode | Configuration | Dual |
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | -55 to 105 °C | ||
Documents & Media
PDF Document
