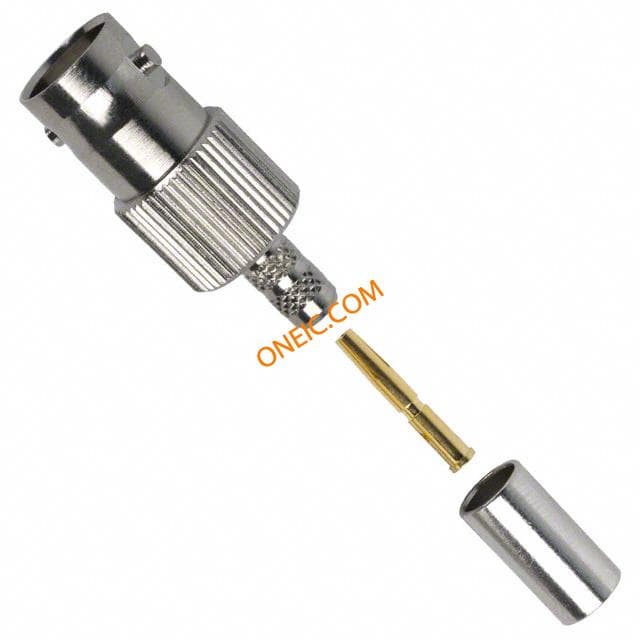

031-80103
| Manufacturer | |
| Description | 75 OHM BNC PLUG RG-59 CABLE CONN BNC PLUG STR 75 OHM CRIMP RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP Connector; RF; BNC; Straight; Cable Plug; True 75 Ohm; Belden 8241, 8279, RG-140, 5 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85366910 |
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | :RG59 | Body Finish | Nickel |
| Cable Group | RG-59 | Body Material | Phosphor Bronze |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin | Contact Finish | :Gold |
| Fastening Type | Bayonet Lock | Connector Style | BNC |
| Contact Material | :Brass | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | :Straight Plug | ||
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
PDF Document
