8281 010500
| Manufacturer | |
| Description | Coaxial Cables 20AWG 1C SHIELD 500ft SPOOL BLACK RG59/U double braided video cable,152m COAXIAL CABLE, 75 OHM IMP., 20AWG SOLID, ANALOG/DIGITAL VIDEO CABLE BLACK Coax - Double Braided RG-59/U Type 75 OHM Video Coax Black |
| Category |
Business
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Core Type | 1/20 | Impedance | 75 Ohms |
| Capacitance | 68.88 pF/m | Voltage Rating | 30 V |
| Conductor Strand | Solid | Attenuation - Typ | 6.3dB/100ft@540MHz, 7.4dB/100ft@720MHz, 7.6dB/100ft@750MHz, 9.2dB/100ft@1GHz |
| Connector Impedance | 59/U | Impedance - Unbalanced/Balanced | RG59/U |
Mechanical
| Length | 500 ft | Weight | 38 lbs |
| Shielding | Shielded | Cable Type | Coaxial |
| Wire Gauge | 20 | Shield Type | DOUBLE BRAID SHIELD |
| Cable Length | 152m | Jacket Color | Black |
| Conductor Type | SOLID CONDUCTOR | Connector Type | S |
| Outer Diameter | 7.747mm | Shield Material | Tinned Copper |
| Color - Connectors | Black | Conductor Material | Copper |
| Diameter - Outside | 0.305 in | Dielectric Material | PE-POLYETHYLENE (SOLID) |
| Insulation Material | PE | Gear Reduction Ratio | 66% |
| Material - Insulation | Polyethylene | Number of Cable Pairs | Solid |
| Number of Cores/Bus Width | 1 | Wire Gauge or Range - AWG | 20 AWG |
| Jacket (Insulation) Material | Polyethylene (PE) | Diameter - Outside, Non-Expanded | 0.305 " |
Product Info
| Series | 8281 | UNSPSC Code | 26121606 |
| Application Specifics | Indoor, Outdoor, Aerial, Analog, Digital, Video | Number of Positions/Contacts | 1 |
Environmental
| Flooded | NO NOT FLOODED OVER BRAID | Fire Rating | GENERAL PURPOSE (CM, CMG, CMX) |
| Ingress Protection | YES IS OUTDOOR GRADE MATERIAL | Operating Temperature | +80°C |
| Maximum Temperature Limit | + 80 C | ||
Documents & Media
Similar Parts

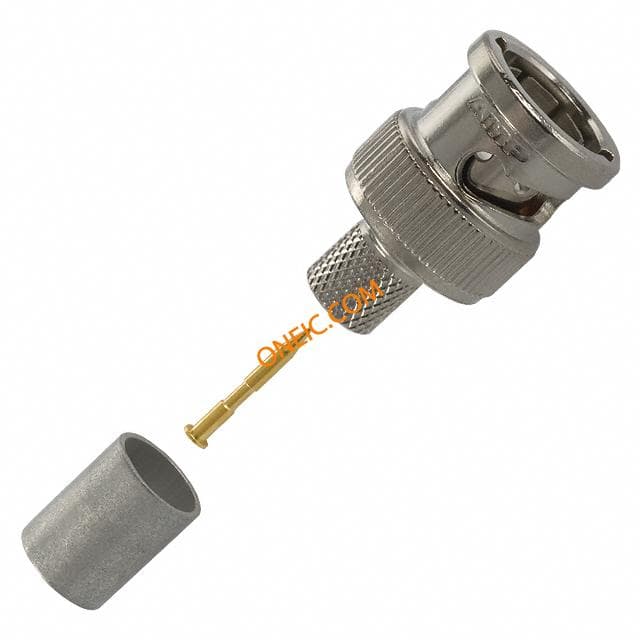

5221185-5
te connectivity / amp
Conn BNC PL 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold BNC RF Connectors CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG 75 OHM COML Conn BNC PL 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP PLUG,75 OHM,COML BNC

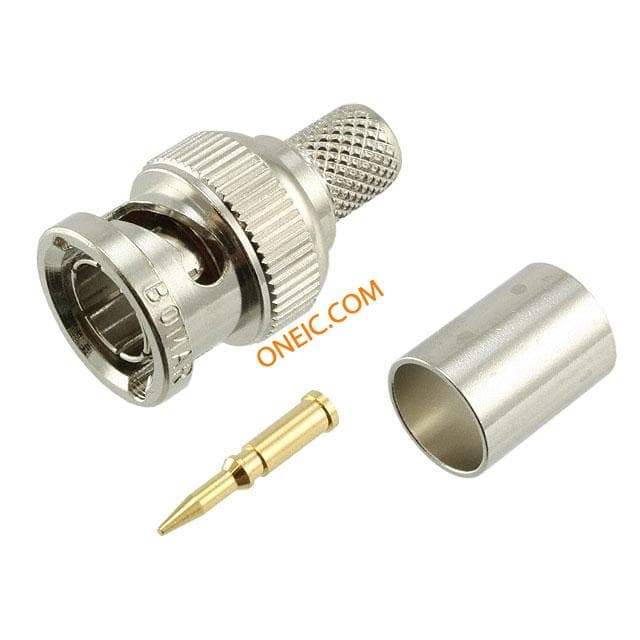

SBC8281
Bomar Interconnect
RF コネクタ PLUG FOR 8281 CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG FOR 8281 Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold Connector,RFCoaxial;75Ohms;RG59;BNC;ForBelden8281Cable;MachinedBrass

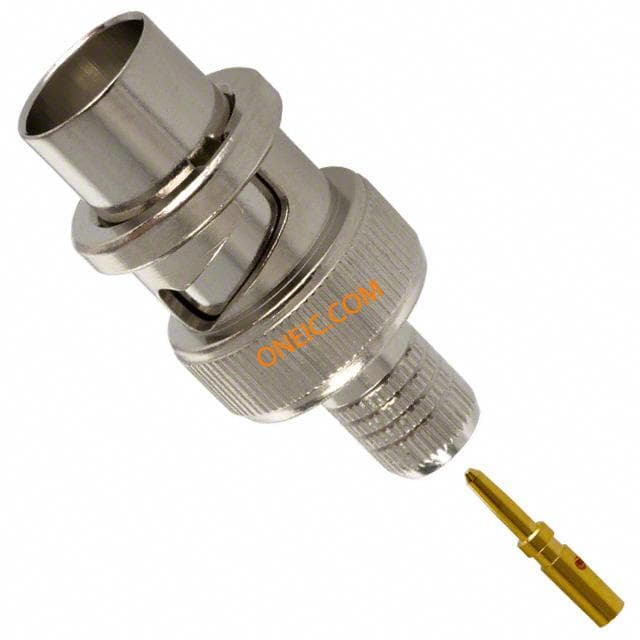

31-321-1000
Amphenol RF
RF Connectors PLUG CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors PLUG Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold

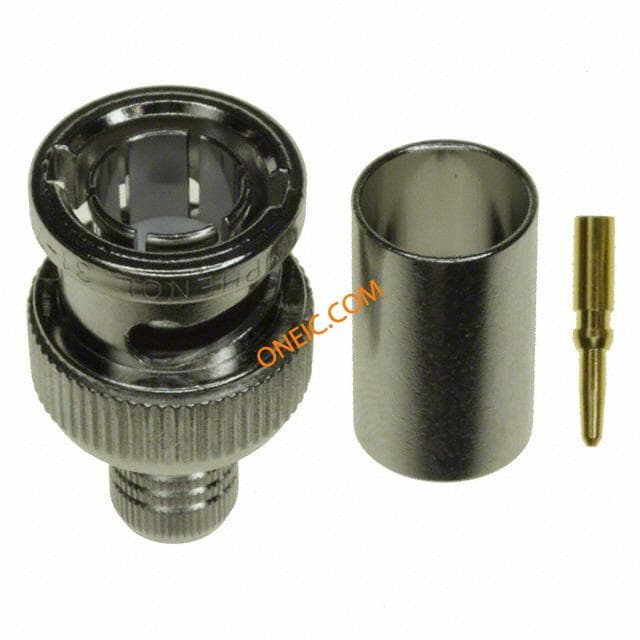

31-71032
