5221185-5
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold BNC RF Connectors CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG 75 OHM COML Conn BNC PL 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP PLUG,75 OHM,COML BNC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 2 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500 V | Frequency - Max | 2GHz |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | Belden 8281, Belden 8281F, Belden 9231, GEPCO VP6000 | Body Finish | Nickel |
| Cable Group | Belden 8281, 8281F, 9231 | Orientation | Straight |
| Termination | Crimp | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Connector Style | BNC |
| Contact Material | Brass | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polyethylene (PE) | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | :Straight Plug |
Product Info
| Type | BNC | Gender | PL |
| Series | :- | Polarity | Standard |
| Connection Type | Coaxial Cable | RF Family/Standard | 5221185 |
Environmental
| Operating Temperature | - 55 C to + 85 C | ||
Documents & Media
Online Document
Online Document
Similar Parts

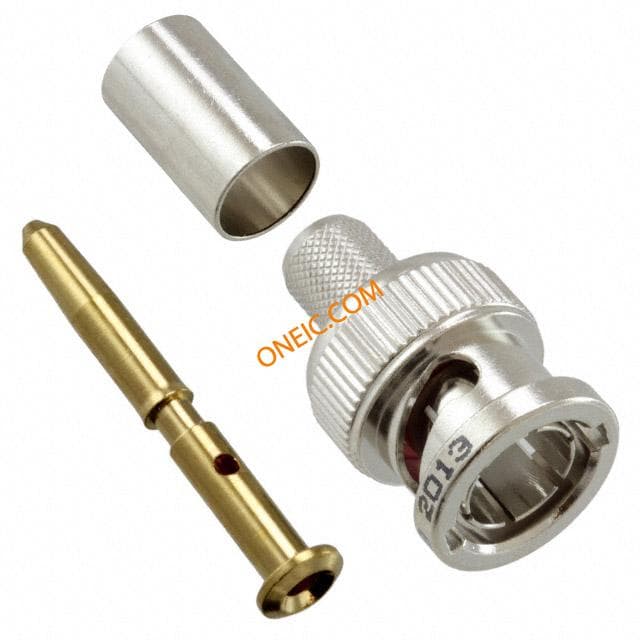

031-80108
